頻寬： 16 GHz Tr = 27.1 psec 範圍： 直流衰減率： 6:1 (如使用 200 Ω ZIF探針，則為 3:1) 輸入電壓範圍： 1.6 Vpp (如使用 200 Ω ZIF 探針，則為 0.8 Vpp) 輸入同模範圍：從直流到 250 Hz 為 ±12 V，當 >250 Hz 時為 ±2.5 V (如使用200 Ω ZIF探針，從直流到 250 Hz 為 ±6 V，當 >250 Hz 時為 ±1.25 V) 偏壓範圍：探測單端信號時為 ±16 V 輸入阻抗： 直流輸入電阻： R diff = 100 kΩ ±2%, R se = 50 kΩ ±2% 輸入電阻 @ >10 kHz： R diff = 1 kΩ, R se = 500 Ω 輸入電容： C diff = 32 fP，C se = 48 fP (使用ZIF探棒頭) 連接工具： Keysight N5445A InfiniiMax III 瀏覽型探測頭 Keysight N5439A InfiniiMax III ZIF 探棒頭 Keysight N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA 探棒頭 Keysight N5441A InfiniiMax III 焊接式探棒頭

頻寬： 20 GHz Tr = 27.1 psec 範圍： 直流衰減率： 6:1 (若使用 200 Ω ZIF 探針，則為 3:1) 輸入電壓範圍： 1.6 Vpp (如使用 200 Ω ZIF 探針，則為 0.8 Vpp) 輸入同模範圍：從直流到 250 Hz 為 ±12 V，當 >250 Hz 時為 ±2.5 V (如使用200 Ω ZIF探針，從直流到 250 Hz 為 ±6 V，當 >250 Hz 時為 ±1.25 V) 偏壓範圍：探測單端信號時為 ±16 V 輸入阻抗： 直流輸入電阻： R diff = 100 kΩ ±2%, R se = 50 kΩ ±2% 輸入電阻@ >10 kHz： R diff = 1 kΩ, R se = 500 Ω 輸入電容： C diff = 32 fP, C se = 48 fP (如使用 ZIF 探針) 連接工具： Keysight N5445A InfiniiMax III 探測頭 Keysight N5439A InfiniiMax III ZIF 探棒頭 Keysight N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA 探棒頭 Keysight N5441A InfiniiMax III 焊接式探棒頭

Bandwidth: 25 GHz Tr = 17.4 psec Range: DC attenuation ratio : 6:1 (3:1 with 200 Ω ZIF tip) Input voltage range : 1.6 Vpp (0.8 Vpp with 200 Ω ZIF tip) Input common mode range : ±12 V at DC to 250 Hz, ±2.5 V at >250 Hz (±6 V at DC to 250 Hz, ±1.25 V at >250 Hz with 200 Ω ZIF tip) Offset range : ±16 V when probing a single-ended signal Input Impedance: DC input resistance : R diff = 100 kΩ ±2%, R se = 50 kΩ ±2% Input resistance @ >10 kHz : R diff = 1 kΩ, R se = 500 Ω Input capacitance : C diff = 32 fF, C se = 48 fF (with ZIF probe head) Connectivity: N5445A InfiniiMax III browser N5439A InfiniiMax III ZIF probe head N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe head N5441A InfiniiMax III solder-in probe head

Bandwidth: 30 GHz Tr = 14.3 psec Range: DC attenuation ratio : 6:1 (3:1 with 200 Ω ZIF tip) Input voltage range : 1.6 Vpp (0.8 Vpp with 200 Ω ZIF tip) Input common mode range : ±12 V at DC to 250 Hz, ±2.5 V at >250 Hz (±6 V at DC to 250 Hz, ±1.25 V at >250 Hz with 200 Ω ZIF tip) Offset range : ±16 V when probing a single-ended signal Input Impedance: DC input resistance : R diff = 100 kΩ ±2%, R se = 50 kΩ ±2% Input resistance @ >10 kHz : R diff = 1 kΩ, R se = 500 Ω Input capacitance : C diff = 32 fF, C se = 48 fF (with ZIF probe head) Connectivity: N5445A InfiniiMax III browser N5439A InfiniiMax III ZIF probe head N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe head N5441A InfiniiMax III solder-in probe head

Bandwidth: 12 GHz specified 13 GHz typical Range: Dynamic Range: 3.3 V peak-to-peak DC Offset Range: +/- 16V Maximum Voltage: +/- 30V Input Impedance: Differential Input R: 50 kOhm Differential Input C: 0.21 pF Single Ended Input R: 25 kOhm Single Ended Input C: 0.35 pF Connectivity: E2669A Differential/Single-ended connectivity kit E2669A Differential/Single-ended Connectivity Kit E2668A Single-ended connectivity kit E2668A Single-ended Connectivity Kit

Bandwidth: 10 GHz Range: Dynamic Range: 3.3 V peak-to-peak DC Offset Range: +/- 16V Maximum Voltage: +/- 30V Input Impedance: Differential Input R: 50 kOhm Differential Input C: 0.21 pF Single Ended Input R: 25 kOhm Single Ended Input C: 0.35 pF Connectivity: E2669A Differential/Single-ended connectivity kit E2669A Differential/Single-ended Connectivity Kit E2668A Single-ended connectivity kit E2668A Single-ended Connectivity Kit

頻寬：7 GHz 動態範圍：+/- 2.5V 直流偏移範圍：+/- 12V 最大電壓：+/- 30V 差動輸入R：50 k 歐姆差動輸入C：0.27-0.34 pF

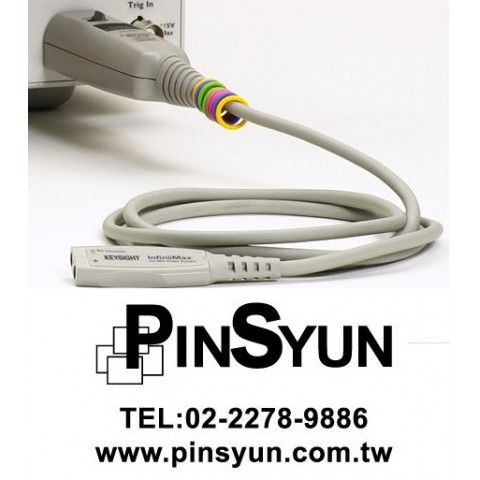

頻寬： 5 GHz 範圍： 動態範圍：+/- 2.5V DC 偏移範圍：+/- 12V 最大電壓：+/- 30V 輸入阻抗： 差動輸入 R：50 kOhm 差動輸入 C：0.27 - 0.34 pF 單端輸入 R：25 kOhm 單端輸入 C：0.44 - 0.67 pF 連線能力： Keysight E2669A 差動式/單端連接套件 Keysight E2668A 單端連接套件

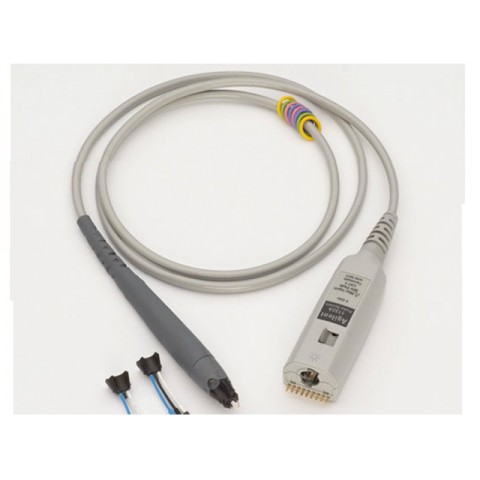

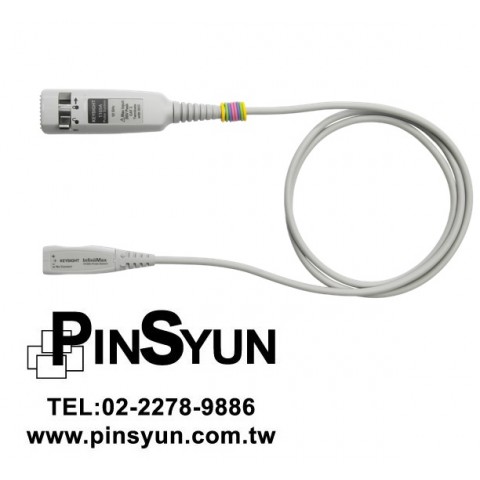

Keysight 1131B InfiniiMax 3.5GHz 示波器探棒 [1131A替代品] 頻率3.5GHz主動式探棒，最大電壓+30/-30 - 頻寬：3.5 GHz - 範圍：    - 動態範圍：+/- 2.5V    - 直流偏移範圍：+/- 12V，使用探棒偏移    - 最大電壓：+/- 30V - 輸入阻抗：    - 差動輸入電阻：50 kΩ    - 差動輸入電容：0.27-0.34 pF    - 單端輸入電阻：25 kΩ    - 單端輸入電容：0.44-0.67 pF   * 延伸閱讀：查看更多其他差動探棒 * 延伸閱讀：查看其他示波器探棒 * 延伸閱讀：[技術文章]示波器探棒挑選大揭密/選購指南

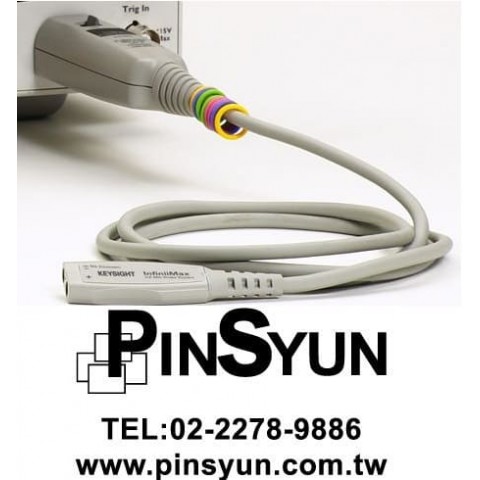

頻寬： 1.5 GHz 範圍： 動態範圍：+/-2.5V DC 偏移範圍：探測單端時為 +/- 12V 最大輸入電壓：峰值為 30V 輸入阻抗： 差動輸入R：50 kOhm 差動輸入C：0.27-0.34 pF 單端輸入R：25 kOhm 單端輸入 C：0.44-0.67 pF 連線能力： Keysight E2669A 差動式/單端連接套件 Keysight E2669A 差動式/單端連接套件 Keysight E2669A 差動式/單端連接套件 Keysight E2669A 差動式/單端連接套件 Keysight E2668A 單端連接套件 Keysight E2668A 單端連接套件 Keysight E2668A 單端連接套件 Keysight E2668A 單端連接套件

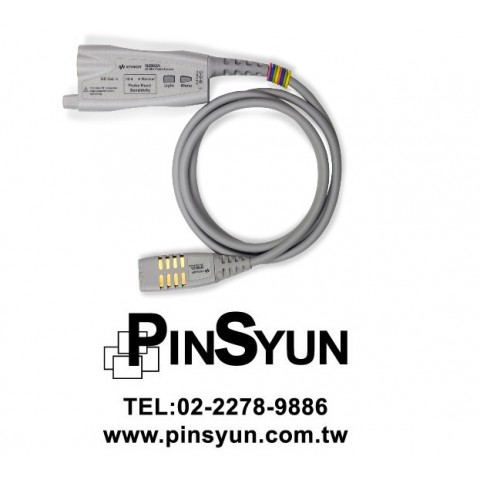

Specifications: Bandwidth: 6 GHz Attenuation ratio: 2:1 or 10:1 (switchable) Range: Dynamic range: ± 5 V or 10 Vpp (at 10:1), ± 1 V or 2 Vpp (at 2:1) DC offset range: ± 15 V Maximum input voltage: 30 V DC + peak AC Input Impedance: Differential input R: 200 kΩ Single-ended input R: 100 kΩ Common mode input R: 50 kΩ Input C: 700 fF (with browser) Connectivity: Comes with InfiniiMode solder-in, socketed tips and browser tip standard N2776A Differential browser tips (qty 3) N2777A InfiniiMode solder-in tips (qty 3) N2778A InfiniiMode socketed tips (qty 3)

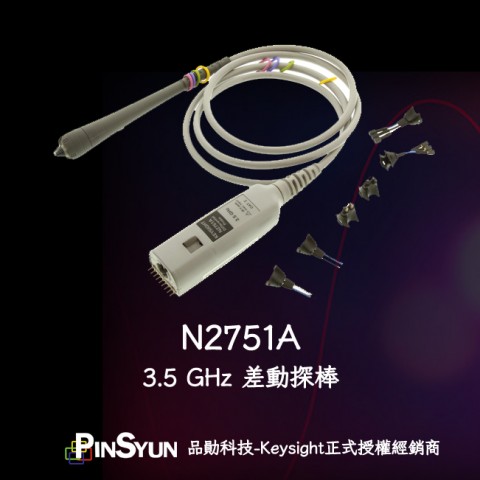

Specifications: Bandwidth: 3.5 GHz Attenuation ratio: 2:1 or 10:1 (switchable) Range: Dynamic range: ± 5 V or 10 Vpp (at 10:1), ± 1 V or 2 Vpp (at 2:1) DC offset range: ± 15 V Maximum input voltage: 30 V DC + peak AC Input Impedance: Differential input R: 200 kΩ Single-ended input R: 100 kΩ Common mode input R: 50 kΩ Input C: 700 fF (with browser) Connectivity: Comes with InfiniiMode solder-in, socketed tips and browser tip standard N2776A Differential browser tips (qty 3) N2777A InfiniiMode solder-in tips (qty 3) N2778A InfiniiMode socketed tips (qty 3)

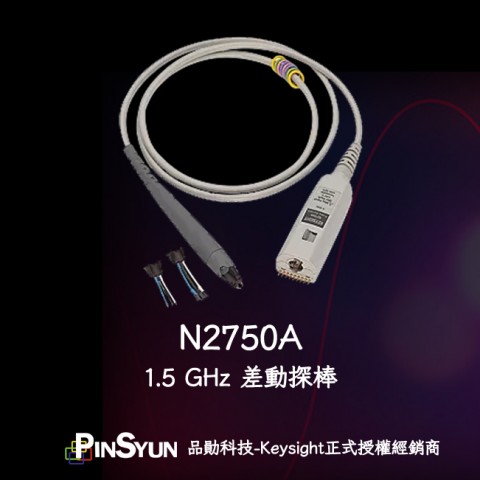

Specifications: Bandwidth: 1.5 GHz Attenuation ratio: 2:1 or 10:1 (switchable) Range: Dynamic range: ± 5 V or 10 Vpp (at 10:1), ± 1 V or 2 Vpp (at 2:1) DC offset range: ± 15 V Maximum input voltage: 30 V DC + peak AC Input Impedance: Differential input R: 200 kΩ Single-ended input R: 100 kΩ Common mode input R: 50 kΩ Input C: 700 fF (with browser) Connectivity: Comes with InfiniiMode solder-in, socketed tips and browser tip standard N2776A Differential browser tips (qty 3) N2777A InfiniiMode solder-in tips (qty 3) N2778A InfiniiMode socketed tips (qty 3)
