- 頻率範圍： 100 kHz to 18 GHz (視感測器類形而定)
- 動態範圍： -30 dBm 至 +10 dBm
- 高準確度 (≤ 0.1% ± 0.5 uW)，極適合用於 1 mW 轉移校驗 (須使用 478A-H75/H76)
- 內建 6.5 位數類比數位轉換器 (ADC)，因此不需要再添購數位萬用電錶。
- 可選擇的電橋電阻 (100/200/300/400 Ω)
- 靈活的遠端連接介面 (GPIB、USB、LXI-C)
- 配備數位彩色液晶螢幕

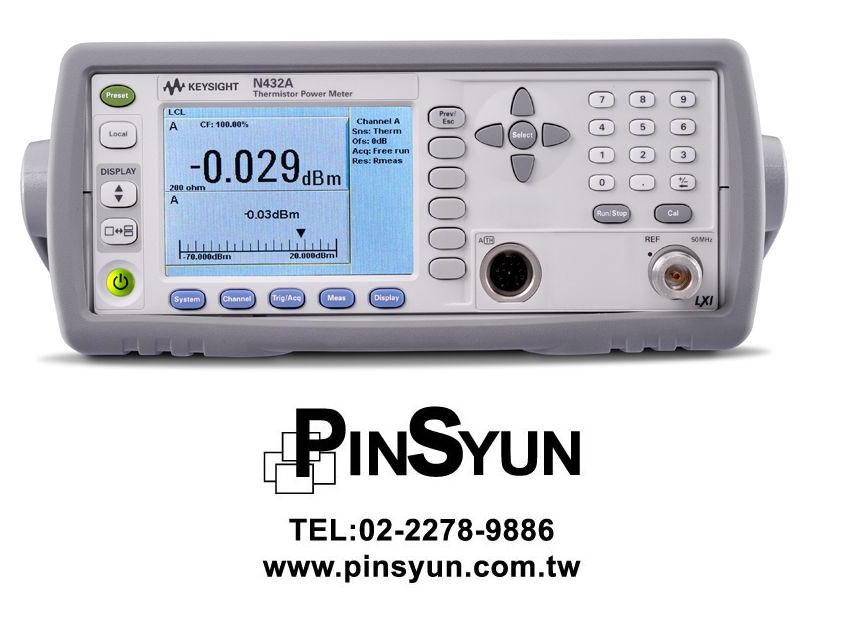

N432A 熱敏電阻功率錶
Keysight N432A 是是德舊款的 432A 類比熱敏電阻功率錶的替代品。這款單通道的平均射頻功率錶可搭配使用 Keysight 8478B 和 478A 熱敏電阻座。搭配成套的 Keysight N432A 和熱敏電阻座非常適合用於需要高量測準確度的應用，尤其適合度量衡和校驗實驗室環境。 這款加強型熱敏電阻座功率錶配有數位彩色液晶螢幕以及親切易用的前面板介面。相較於舊款 Keysight 432A 旋鈕式儀器，Keysight N432A內建的校驗係數表讓您能夠更容易且更準確地儲存校驗係數。它與 LXI 標準相容，並可透過GPIB、USB 和 LAN 介面進行程控。
| N432A-008 | Thermistor sensor adaptor cable 5ft (1.5m) |
| N432A-009 | Thermistor sensor adaptor cable 10ft (3 m) |
| N432A-010 | Thermistor sensor adaptor cable 20ft (6.1m) |
| N432A-0B1 | English language user and installation guide; printed |
| N432A-0BF | English language programming guide, printed |
| N432A-0BK | English language user and programming guide, printed |
| N432A-0BW | English language service guide, printed |
| N432A-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| N432A-908 | Rackmount kit - 1 unit with blank filler included |
| N432A-909 | Rackmount kit with 2 units side by side |
| N432A-A6J | ANSI Z540-1-1994 Calibration |
| N432A-ABJ | Japan - Japanese user guide and English programming guide, printed |
| N432A-CD1 | Documentation Optical Disk |
| 1CM007A | Rackmount Flange Kit 88.1mm H (2U) - Brackets, Lock Link for Side-by-Side Mount |
| 34131A | Transit case for half-rack 2U high instruments (e.g., 34401A) |
| 34141A | Yellow soft carry/operating case |
| 34161A | Accessory pouch for 34401A, 33120/250A, 34970A, 53131A, etc. |
| N4998A | Thermistor sensor adaptor cable 5ft (1.5m) |
| N4998B | Thermistor sensor adaptor cable 10ft (3m) |
