衰減控制器

Keysight 衰減控制器，J7201A/J7201B/J7201C

推薦使用頻率範圍可從DC to 6/18/26.5 GHz，衰減範圍可從0 to 101/121 dB , 1 dB 步進的衰減控制器J7201A/J7201B/J7201C

Keysight 衰減控制器J7201A/J7201B/J7201C主要特色

- Attenuation sweep function enables the selection of application-specific dwell time and attenuation values - LXI Class C compliance provides GPIB, USB and LAN connectivity for easy remote integration
- 0.03 dB insertion loss repeatability typical per section for the entire 5 million cycles ensures accuracy and reduces calibration intervals
- Excellent attenuation accuracy and flatness ensure precise measurements
- Relative attenuation step function allows attenuation relative to any value
- Keypads and rotary knob control provide fast and easy attenuation setting

時間型號

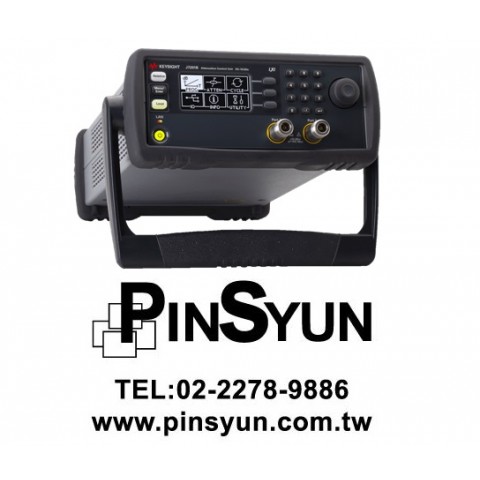

J7201C衰減控制裝置DC to 26.5 GHz, 0 to 101 dB, 1 dB step

DC to 26.5 GHz, 0 to 101 dB, 1 dB step 目前上市/現已支援

J7201B 衰減控制裝置, DC-18GHz, 0-121dB, 1dB steps [取代J7211B]

DC to 18 GHz, 0 to 121 dB, 1 dB steps J7201B 可取代取代J7211B / 現可支援

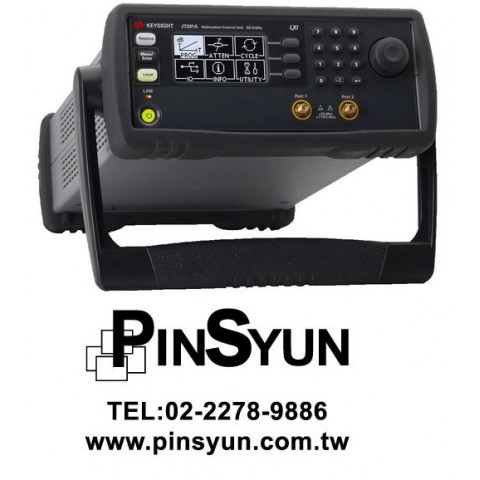

J7201A 衰減控制裝置DC to 6 GHz, 0 to 121 dB, 1 dB steps

DC to 6 GHz, 0 to 121 dB, 1 dB step 目前上市/現已支援
