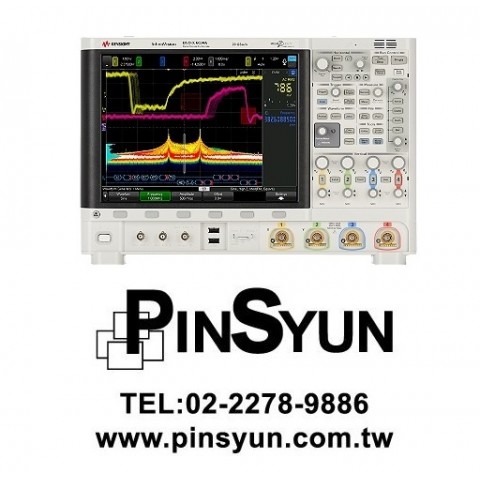

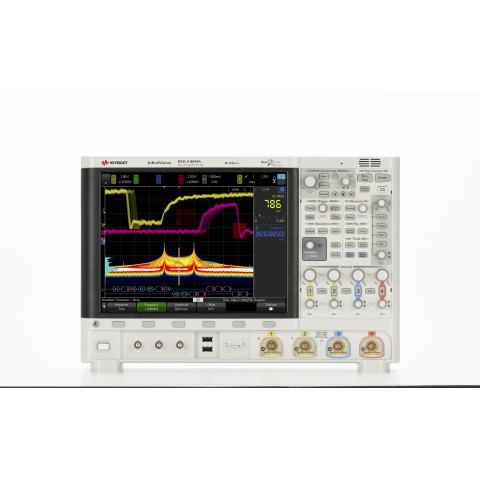

目前上市/現可支援                                 主要規格：DSOX6004A 示波器，1 GHz - 6 GHz，4 個類比通道​​​​​​   DSOX6004A 示波器，1 GHz - 6 GHz，4 個類比通道 1 GHz - 6 GHz 4 個類比通道 透過 12.1 吋電容式多點觸控螢幕、區域觸發功能和 450,000 wfms/s 更新率，輕鬆檢視並隔離信號 1 mV/div（1 GHz）時雜訊位準為 115 uVrms，可實現更精準的量測 6 吋深機身方便易攜，方便您隨時隨地進行高效能量測 標配長條圖和不同色階，讓您能快速檢視信號分析細節 抖動和眼圖分析選項方便您檢視信號完整性 利用完整升級選項擴充功能

New bandwidth standard •1 GHz – 6 GHz upgradable bandwidth, at a surprising price •Low noise floor of 115 uVrms at 1 mV/div (1 GHz / 50 Ω) •Only 6” (15 cm) deep, 15 lbs (6.8 kg) New visualization standard •> 450,000 wfms/sec update rate •12.1-inch capacitive multi-touch screen with hardware InfiniiScan Zone touch trigger •Standard histogram and color grade •Optional jitter and real-time eye diagram analysis New integration standard; the power of 6 instruments in 1, fully upgradable •Oscilloscope, integrated 16 digital channels on MSO models, serial protocol trigger and decode (option), integrated dual-channel function/arbitrary waveform generator (option), integrated 3-digit digital voltmeter (option), integrated 10-digit counter and totalizer (option) •Plus, enhanced color FFT and 14 Multilanguage voice control
