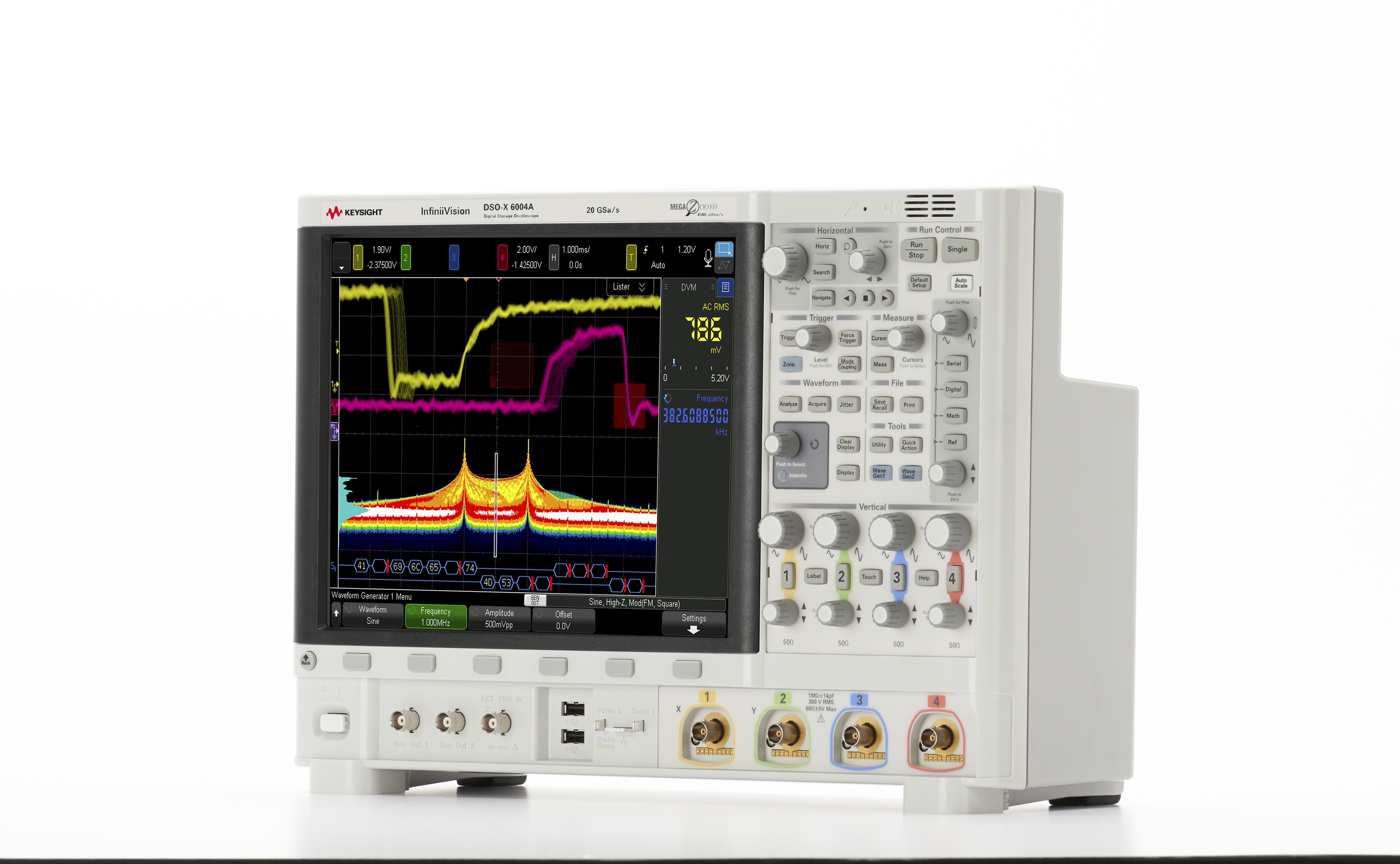

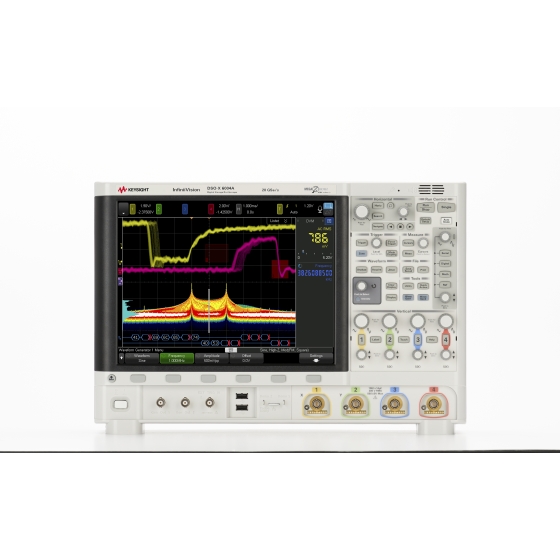

InfiniiVision 6000X系列 進階型示波器

►New bandwidth standard
►New visualization standard
►New integration standard

頻寬1GHz, 通道數2~4CH, 取樣率20GSa/s, 記憶體4Mpts

  目前上市/現可支援

產品詳細介紹

New bandwidth standard

•1 GHz – 6 GHz upgradable bandwidth, at a surprising price
•Low noise floor of 115 uVrms at 1 mV/div (1 GHz / 50 Ω)
•Only 6” (15 cm) deep, 15 lbs (6.8 kg)

New visualization standard

•> 450,000 wfms/sec update rate
•12.1-inch capacitive multi-touch screen with hardware InfiniiScan Zone touch trigger
•Standard histogram and color grade
•Optional jitter and real-time eye diagram analysis

New integration standard; the power of 6 instruments in 1, fully upgradable

•Oscilloscope, integrated 16 digital channels on MSO models, serial protocol trigger and decode (option), integrated dual-channel function/arbitrary waveform generator (option), integrated 3-digit digital voltmeter (option), integrated 10-digit counter and totalizer (option)
•Plus, enhanced color FFT and 14 Multilanguage voice control

  • The InfiniiVision 6000 X-Series oscilloscopes combine price and performance to set a new standard in the portable performance oscilloscope world.

    With the industry’s largest 12.1-inch capacitive touch screen with multi-touch and voice control, you may be surprised just how easy it is to use the InfiniiVision 6000 X-Series. It is “designed for touch,” so you spend less time setting up your scope and more time designing and testing.

    Plus the 6000 X-Series set the new visualization standard with an industry-leading 450,000 waveforms-per-second update rate that lets you see more of your signal behavior so you have more confidence in your design.

  • 機型選擇

    型號

    頻寬

    取樣率

    通道數

    記憶深度

    庫存量

     DSOX/MSOX6002A

     1GHz~6GHz

     20GSa/s

     2/2+16

     4Mpts

    來電洽詢

    DSOX/MSOX6004A

     1GHz~6GHz

     20GSa/s

     4/4+16

     4Mpts

    來電洽詢

    建議維修校驗選項:

    R-51B-001-3C 是德原廠三年保固

    R-50C-011-3   是德原廠三年校驗

  • 6000X示波器  Datasheet

    新的標準:見下一代示波器技術>>The new standard: See the next generation of oscilloscope technology
