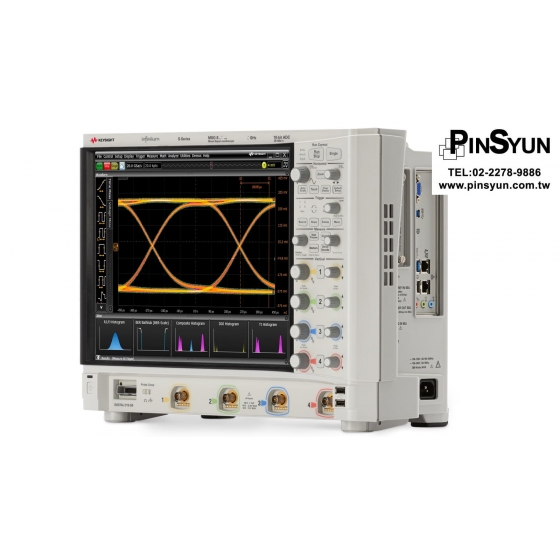

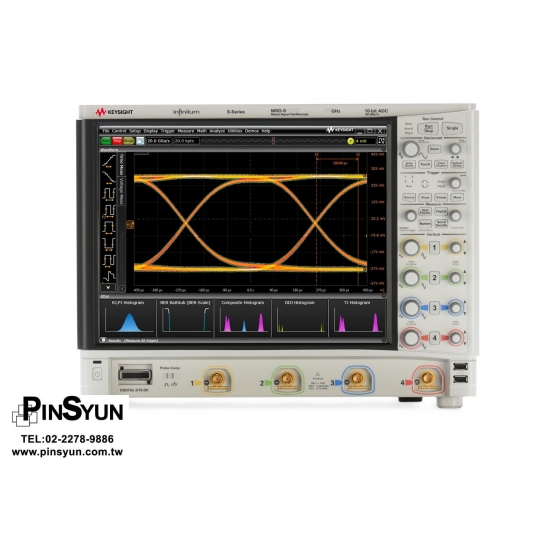

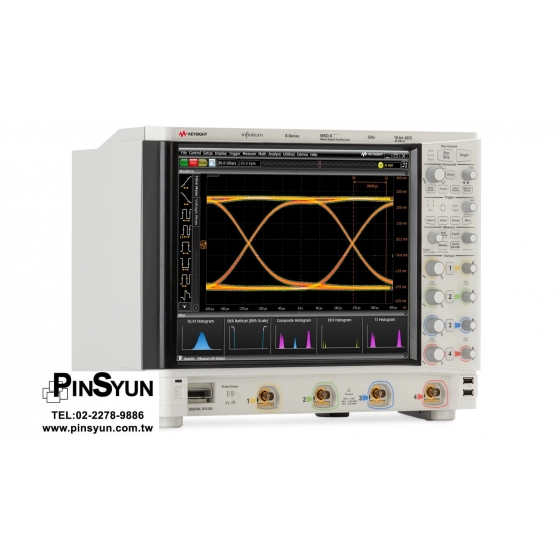

MSOS604A 高解析度示波器:6 GHz,4 個類比通道和 16 個數位通道

  目前上市/現可支援

產品詳細介紹

  目前上市/現可支援
 MSOS604A 高解析度示波器:6 GHz,4 個類比通道和 16 個數位通道


  • MSOS604A 高解析度示波器:6 GHz,4 個類比通道和 16 個數位通道
  • 6 GHz 頻寬(可升級)
  • 4 個類比通道和 16 個數位通道
  • 20 GSa/s 最大取樣率,每通道標配 50 Mpts 記憶體,可擷取更長的信號軌跡
  • 6.8 位元系統有效位元(ENOB)和 10 位元類比數位轉換器(ADC),可實現絕佳的信號完整性
  • 15 吋多點觸控電容式觸控螢幕大幅提昇易用性,標配的固態硬碟可加速開機並提高可靠度
  • 可透過各種協定、相符性測試和分析軟體提昇測試效率
  • 如需更多資訊: 查閱技術規格書


    頻寬 6 GHz
    通道數 4 + 16
    最大的記憶體深度

    800 Mpts (2 channels), 400 Mpts (4 channels)

    最大的取樣率

    20 GSa/s (2 channels), 10 GSa/s (4 channels)

    ADC 位元 10 bits


    *此系列適用的軟體

    Keysight S系列協定應用軟體
    簡化設計的除錯程序
    • 超過19種協定解碼器供您選擇
    • 將DSO或MSO實體層擷取信號轉成特定協定所需的封包
    • 使用時間關聯性追蹤標記快速在實體層與協定層之間移動以存取資訊

    Keysight S系列相符性應用軟體
    獲得深度技術專業知識
    • 針對每一種技術標準之特定規格進行測試
    • 是德科技技術專家積極參與多個技術標準組織與委員會

    Keysight S系列分析應用軟體
    深入洞察造成信號抖動的因素
    • 完整的離線功能讓您能在從模擬到晶圓除錯過程中進行測試
    • 功率應用軟體提供可直接在示波器上執行的完整功率量測
    • 透過等化張開緊密閉合的眼圖




    *此系列適用的配件

    Keysight S系列相容型探棒
    選對探棒,提升量測可靠度
    • 支援超過100種電壓與電流探棒
    • PrecisionProbe可全面修正從探棒到探針的量測準確度
    • 絕佳的探量解決方案,可量測極端溫度、高靈敏電流、電源完整性





    *想看更多產品,以獲得精湛量測洞察力嗎?


  • DSOS000-821 Precision BNC to SMA adapters (qty 2)
    Node locked license for version 4.xx
    U1882B-1NL Power measurement analysis software, node locked license
    N5392C-2NL Ethernet compliance application with Energy Efficient Ethernet upgrade, node locked license
    N5392C-3NL Ethernet compliance application only, node locked license
    N5392C-1NL Ethernet compliance with Energy Efficient Ethernet, node locked license
    N5413C-1NL DDR2 and LPDDR2 Compliance Test Application, node locked license
    N5413C-2NL Upgrade for LPDDR2 Compliance Test Application, node locked license
    N5413C-3NL DDR2 and LPDDR2 Debug Tool, node locked license
    N5416B-1NL USB 2.0 Compliance Software, node locked license
    N5431B-1NL XAUI compliance application, node locked license
    U7231C-1NL DDR3 and LPDDR3 Compliance Software, node locked license
    U7231C-2NL Upgrade to DDR3 and LPDDR3 Compliance Software, node locked license
    U7231C-3NL DDR3 and LPDDR3 Debug Tool, node locked license
    N6462B-1NL DDR4 and LPDDR4 compliance test software, node locked license
    N6462B-3NL DDR4 Debug Tool, node locked license
    Fixed Perpetual and non-network licenses
    U1882B-1FP Power measurement analysis software, fixed perpetual license
    U1882B-1TP Power measurement analysis software, transportable perpetual license
    N5392C-1FP Ethernet compliance with Energy Efficient Ethernet, fixed perpetual license
    N5392C-1TP Ethernet compliance with Energy Efficient Ethernet, fixed transportable license
    N5392C-2FP Ethernet compliance application with Energy Efficient Ethernet upgrade, fixed perpetual license
    N5392C-3FP Ethernet compliance application only, fixed perpetual license
    N5392C-3TP Ethernet compliance application only, transportable perpetual license
    N5413C-1FP DDR2 and LPDDR2 Compliance Test Application, fixed perpetual license
    N5413C-1TP DDR2 and LPDDR2 Compliance Test Application, transportable perpetual license
    N5413C-2FP Upgrade for LPDDR2 Compliance Test Application, fixed perpetual license
    N5413C-3TP DDR2 and LPDDR2 Debug Tool, transportable perpetual license
    N5413C-3FP DDR2 and LPDDR2 Debug Tool, fixed perpetual license
    N5416B-1FP USB 2.0 Compliance Software, fixed perpetual license
    N5416B-1TP USB 2.0 Compliance Software, transportable perpetual license
    N5431B-1FP XAUI compliance application, fixed perpetual license
    N5431B-1TP XAUI compliance application, transportable perpetual license
    U7231C-1FP DDR3 and LPDDR3 Compliance Software, fixed perpetual license
    U7231C-1TP DDR3 and LPDDR3 compliance test software application, transportable perpetual license
    U7231C-2FP Upgrade to DDR3 and LPDDR3 Compliance Software, fixed perpetual license
    U7231C-3FP DDR3 and LPDDR3 Debug Tool, fixed perpetual license
    U7231C-3TP DDR3 and LPDDR3 Debug Tool, transportable perpetual license
    N6462B-1FP DDR4 and LPDDR4 compliance test software, fixed perpetual license
    N6462B-1TP DDR4 and LPDDR4 compliance test software, transportable perpetual license
    N6462B-3FP DDR4 Debug Tool, fixed perpetual license
    N6462B-3TP DDR4 Debug Tool, transportable perpetual license
    N6462B-2TP Upgrade to LPDDR4 compliance software, transportable perpetual license
    N6462B-2FP Upgrade to LPDDR4 compliance software, fixed perpetual license
    N6462B-4FP LPDDR4 Debug Tool, fixed perpetual license
    N6462B-4TP LPDDR4 Debug Tool, transportable perpetual license
    N6462B-5FP LP/DDR4 Compliance Software Data Analytics Web Service, fixed perpetual license
    N6462B-5TP LP/DDR4 Compliance Software Data Analytics Web Service, transportable perpetual license
    U7250A-1FP MIPI C-PHY Compliance, fixed perpetual license
    U7250A-1TP MIPI C-PHY Compliance, transportable perpetual license
    N6474A-1FP ONFI Compliance Test, fixed perpetual license
    N6474A-1TP ONFI Compliance Test, transportable perpetual license
    N5399F-1FP HDMI 1.4 TMDS transmitter electrical compliance and validation software, fixed perpetual license
    N5399F-1TP HDMI 1.4 TMDS transmitter electrical compliance and validation software, transportable perpetual license
    N5399F-2FP Upgrade to HDMI 1.4 TMDS transmitter electrical compliance and validation software, fixed perpetual license
    U7238E-1FP MIPI D-PHY 2.0 Compliance Test Software, fixed perpetual license
    U7238E-1TP MIPI D-PHY 2.0 Compliance Test Software, transportable perpetual license
    U7238E-2FP MIPI D-PHY 2.0 Compliance upgrade from U7238C/D, fixed perpetual license
    U7249E-1FP MIPI M-PHY 4.1 Compliance Test Software, fixed perpetual license
    U7249E-1TP MIPI M-PHY 4.1 Compliance Test Software, transportable perpetual license
    U7249E-2FP MIPI M-PHY 4.1 Compliance upgrade from U7249C/D, fixed perpetual license
    DSOS000-DSA DSA Software Bundle, fixed perpetual license
    DSOS001-DSA Includes 200 Mpts/CH Memory and EZJIT Complete
    N5393G-2FP PCIe Compliance 4.0 Upgrade from N5393E (2.5G Only), fixed perpetual license
    N5393G-3FP PCIe 4.0 Compliance Application 2.5G Only, fixed perpetual license
    N5393G-3TP PCIe 4.0 Compliance Application 2.5G Only, transportable perpetual license
    Software Option Class
    E6960A-1FP 1000BaseT1 Transmitter Compliance Application, node-locked, perpetual license
    E6960A-1TP 1000BaseT1 Transmitter Compliance Application, transportable, perpetual license
    DSOS000-A6J ANSI Z540 Compliant Calibration
    DSOS000-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
    DSOS000-AMG Calibration + Uncertainties + Guardbanding (Accredited)
    DSOS000-100 Includes 100 Mpts/CH Memory
    DSOS000-200 Includes 200 Mpts/CH Memory
    DSOS000-400 Includes 400 Mpts/CH Memory
  • *技術規格

    DSOS系列規格表:Infiniium S-Series High-Definition Oscilloscopes - Data Sheet
    Keysight's Infiniium S-Series oscilloscopes use 10-bit ADC and low-noise front-end technology that work together to provide up to 8 GHz performance with the industry’s best signal integrity.

    DSOS系列使用手冊:Keysight MultiScope Hardware Configuration Guide
    This guide describes the equipment required to configure MultiScope systems and shows you how to set up and connect the equipment.


    *應用指南



    汽車串列匯流排測試 - 應用指南
    本應用指南將舉例說明各種汽車串列匯流排的性能。實例中使用了 Keysight InfiniiVision X 系列和 Infiniium S 系列示波器,並將介紹各自的優點。
    評估示波器的訊號完整性 - 應用指南
    示波器自身訊號完整性方面的差異直接影響到工程師能否有效地對設計進行深入分析、理解、除錯和評估。示波器的訊號完整性不佳,將對產品開發週期、產品品質以及元器件的選擇帶來巨大風險。

    This application note discussed measurement requirements for the USB 2.0 serial bus and how both Keysight’s 6000 X-Series and Infiniium Series oscilloscopes address those challenges.

    This application note will outline how the Infiniium oscilloscopes can be used to make a variety of FFT and wideband RF measurements to speed designs to market.

    When evaluating a new oscilloscope that will include serial protocol applications you should consider the six questions discussed in this application note.

    The Infiniium 9000 Series oscilloscope is three instruments in one: scope, logic analyzer, and protocol analyzer, and it offers the widest range of debug and compliance application software.
