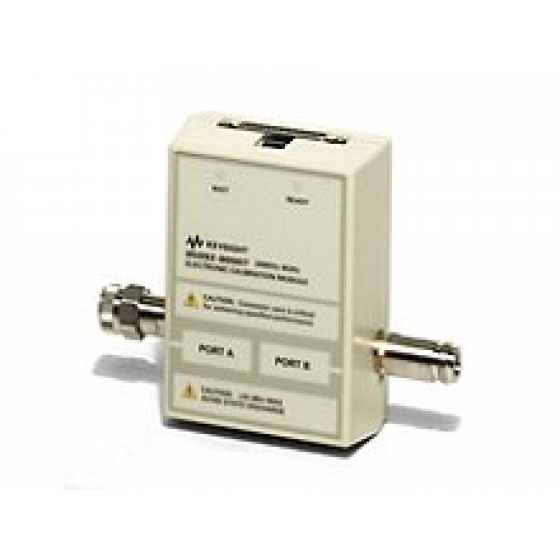

85092C

2-port RF Electronic Calibration (ECal) Module Type-N 50 ohm

目前上市/現已支援

產品詳細介紹

  目前上市/現可支援

主要規格:2-port RF Electronic Calibration (ECal) Module Type-N 50 ohm




  • *主要技術規格:

    • 頻率範圍為 300 kHz 到 9 GHz
    • 具單一連線的快速全雙埠校驗
    • 簡易非插入性裝置校驗
    • NIST 可溯及的準確校驗
    • 減少接頭磨損
    • 使用 PNA 和 ENA 系列網路分析儀來直接控制的 USB 介面
    • 可靠的固態切換



    *可搭配之網儀:

    E5063A:ENA 系列網路分析儀,  5 Hz~20 GHz

    E5061B:ENA 系列網路分析儀,100 kHz 至1.5 GHz/3 GHz,2 埠

    FieldFox 手持式微波分析測試儀
  • 庫存量:來電洽詢


    *選項與選配

    85092C-00A Add Type-N 50-Ohm adapters
    85092C-00F Both Type-N 50-Ohm connectors are female on module
    85092C-00M Both Type-N 50-Ohm connectors are male on module
    85092C-103 Port A connector is Type-N 50-Ohm female
    85092C-104 Port A connector is Type-N 50-Ohm male
    85092C-150 Wooden storage box
    85092C-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
    85092C-201 Port B connector is 3.5mm female
    85092C-202 Port B connector is 3.5mm male
    85092C-205 Port B connector is 7-16 female
    85092C-206 Port B connector is 7-16 male
    85092C-A6J ANSI Z540-1-1994 Calibration
    85092C-ABA Printed manual English
    85092C-M0F One female and one male connector, both type-N 50 ohm
    85092C-UK6 Commercial calibration certificate with test data





  • *規格型錄:


    Electronic Calibration (ECal) Modules for Vector Network Analyzers - Technical Overview
