函數波形產生器/訊號產生器
33611A 單通道任意波形產生器,80 MHz



頻率80MHz  單通道  取樣率:660 MSa/s
任意波形:每通道4MSa/s  選購每通道64MSa/s

* [實際操作影片] Keysight 訊號產生器操作教學

  目前上市/現已支援

庫存: 來電洽詢
33500B and 33600A Series Trueform Waveform Generators - Data Sheet
Data sheet for the 33500B and 33600A Series waveform generators

產品型錄2019-11-01

IQ Signal Generation Made Easy - White Paper
This white paper will cover how to generate both ideal and non-ideal IQ signals. We will use the Keysight 33500B and 33600A Trueform Series waveform generators with the IQ Signal Player option to show you how to do this.

應用手冊2019-09-25

是德科技基礎儀器 2019 年 5 月 - 2019 年 7 月
以新一代電子負載將電源設計提升到嶄新境界

型錄2019-04-17

5 大秘訣教您如何善用函數產生器的功能 - 電子書
今日的數位函數/波形產生器功能變得更強大,但大多數工程師都不知道如何使用這些先進的功能。本應用說明將會介紹五種先進波形功能,這些功能有助於使測試任務更加順利,並幫助您節省實驗所需時間。

電子書2018-12-28

有效產生複雜波形的四種方法 - 電子書
有效產生複雜波形的四種方法。

型錄2018-09-21

How Have Function Generators Evolved? – White Paper
Function generators have come a long way since eight decades ago. Learn how the function generators evolved into versatile tools you use every day to provide reliable stimulus to test and characterize your devices.

應用手冊2018-09-18

Adding DC Offsets to a Function Generator’s Output - White Paper
A variety of applications require adding a DC offset to a function generator’s output. This paper shows several different ways to accomplish this task.

應用手冊2018-09-18

使用函數/任意波形產生器產生脈衝
函數產生器提供絕佳的靈活性,可產生從簡單修正方波到任意波形的脈衝。

應用手冊2018-09-17

如何在無程控的情況下輕鬆建立任意波形_品勛-白皮書
This paper will let you explore two ways to create arbitrary waveforms for your function generator/waveform generator to playback without all the complex programming. This paper will also show you more advanced method of creating your arbitrary waveforms using the BenchVue Function Generator application software.

應用手冊2018-08-20

直接數位合成(DDS)產生器與 Trueform 波形產生器大對決 - 技術總覽
請閱讀本文,以進一步了解 DDS 和 Trueform 波形產生器之間的差異,以及這些差異對於測試會造成什麼樣的影響。

技術總覽2018-04-16

A Flexible Test Solution for 2.4 GHz ZigBee Transmitter and Receivers - Application Note
This application note explains a low cost measurement solution for 2.4 GHz ZigBee O-QPSK signal generation for receiver test and signal analysis for transmitter test

應用手冊2018-04-03

33500 & 33600 Series Waveform Generators 3D Model, STEP Format
This is a STEP format 3D Model of the 33500 & 33600 Series Waveform Generators.

技術總覽2015-10-15

Trueform Series Waveform Generators - Operating and Service Guide (CHM format)
Contains operating, programming, and servicing information for the Trueform Series in Microsoft® Compiled HTML Help (CHM) format. To view the Help file, download the ZIP file to your local hard drive and then extract the contained CHM file to a folder on your local hard drive. Once you have downloaded the CHM file to your computer, an internet connection is not required in order to view the Help file.

操作手冊2015-09-10

Top 3 Reasons Why Low-Cost RF Instruments Are Ideal Modulation Teaching Tools - Application Brief
This flyer provides essential products information and why these solutions are great for users in education.

促銷資料2014-12-11

Trueform Series Waveform Generators - Operating and Service Guide (PDF format)
Contains operating, programming, and servicing information for the Trueform Series in PDF format, which is optimized for hardcopy printing.

操作手冊2014-12-01

Trueform Series Waveform Generators - Operating and Service Guide (WebHelp format)
Contains operating, programming, and servicing information for the Trueform Series in WebHelp format. This WebHelp file provides a cross-platform solution for viewing the Help content on most internet browsers. Note that an internet connection is required in order to view the WebHelp file.

操作手冊2014-03-27

Function/Arbitrary Waveform Generator Selection Guide

選購指南2014-02-27

建構靈活的數位調變解決方案

應用手冊2013-08-26

33500B Series - Dual-Channel Operation
Testing digital devices typically requires sending a series of bits to the device under test (DUT). If these bits are easily predictable, the test coverage will be limited.

技術總覽2012-10-02

33500 Series Waveform Generators - Waveform Sequencing
The Keysight 33500B Series instruments include an embedded waveform editor that allows you to create a wide range of arbitrary waveforms, up to 1 million samples long, or up to 16 million samples.

技術總覽2012-10-01

33500 Series Waveform Generators - Accessing Documentation When and Where You Need It
The Keysight 33500B Series waveform generator includes a front panel with software that allow configuration and control of the instrument quickly and easily.

技術總覽2012-10-01

33500 Series Waveform Generators - Using the Built-in Web Interface
The Keysight 33500B Series includes features for meeting many applications and challenges, including mobile documentation access.

技術總覽2012-10-01

33500 Series Waveform Generators - PRBS Pattern Generation
The Keysight 33522A includes features for meeting many applications and challenges, including dual-channel operation. Use these features from the front panel softkey menus or via the standard commands.

技術總覽2012-10-01

33500B Series Complex Modular Generation with Low-Cost Arbitrary Waveform Generators - White Paper
This white paper illustrates how the Keysight 33500 Series waveform generators with Trueform technology can be applied to generate complex modulated signals.

應用手冊2012-08-27

Keysight 33500B系列波形產生器 - 簡易規格書
簡易規格書介紹了 Keysight 33500B 系列波形產生器的特色與規格。

促銷資料



主要特點

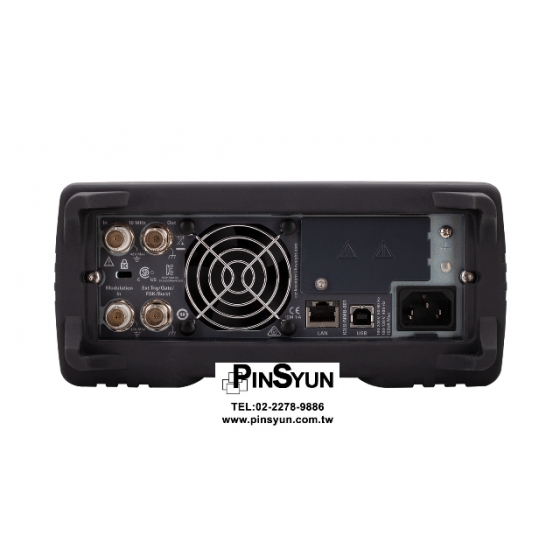

Keysight 33611A 任意波型產生器/訊號產生器,80 MHz,單通道

推薦使用頻率80MHz,單通道的任意波型產生器33611A,可產生雙音頻 (兩個通道上為 4 音頻)、方波、正弦波、脈衝雜訊等

Keysight 33611A主要技術規格:

- 33611A Trueform 任意波形產生器
- 頻寬: 80 MHz 高頻寬脈衝; 而 DDS 產生器脈衝僅能達到 50 MHz,獨立設置上升和下降邊沿時間
- 通道數: 單通道
- 提供從 PN3 到 PN32 的標準 PRBS 碼型,可還擇 PN 類型, 設置bit率, 設置邊沿時間
- 雙通道耦合、頻率和幅度耦合,以及通道之間的追蹤,可設置每個通道的起始相位,以及通道間的相移
- 兩個信號之間的矢量和,與頻率和幅度無關
- 可產生雙音頻 (兩個通道上為 4 音頻)、方波、正弦波、脈衝雜訊等
- Trueform 任意波形,標準生成多達 4 M 點, 或選購 16 M
- 可連接任意波形分段,分段數高達 512 個
- 1 mVpp 的低電壓範圍;DDS 僅能達到 10 mVpp。設置電壓上下限值, 以防止被測件過载
- 調節頻寬,重點查看雜訊能量。雜訊源可佔據整個 120 MHz 頻寬
- [實際操作影片] Keysight 訊號產生器操作教學


註: 單通道的生器不能升級成 2 個通道的產生器。


* 需要更大頻寬或更多通道嗎?
- 需要更多通道? 33612A 80MHz 2channel
需要更大頻寬? 33621A 120MHz 1channel

執行裝置測試時,您需要乾淨、低失真、穩定和可靠的信號源。
是德科技Keysight獨家的 Trueform 技術,讓您能夠信心十足地產生傳真度遠優於其他同級產品(採用 DDS 技術)的特定波形。利用 Trueform 系列波形和函數產生器的逐點式任意波形功能,您可定義任何波形的形狀與長度。抗混疊(anti-aliasing)技術確保您能獲得無比準確的波形,讓您可在任何速率下播放波形。您還可自訂播放信號的方式與取樣率,讓稍縱即逝的異常信號無所遁形,以便確實執行元件可靠性測試。

Keysight 33611A主要技術規格:

- 出色的信號完整性
無論在任何頻率或取樣率下,您皆可獲得所需的波形。
- 較低的諧波失真
針對您的設計特性(而非波形產生器特性)進行量測。
- 減少抖動
可產生極低的相位雜訊,進而實現最準確的信號再現。
可變的頻寬雜訊
讓工程師能夠調整內建雜訊產生器的頻寬,以便控制信號的頻率內容。
- 波形加總和結合功能
您可在沒有雙通道產生器的情況下,產生雙音多頻信號。在雙通道模式下,您可相加並結合多達 4 個信號。
- BenchVue
直覺地控制您的波形產生器、建立自動化測試,並且在 PC 上設計客製的波形。



需要更大頻寬或更多通道嗎?
- 需要更多通道? 33612A 80MHz 2channel
- 需要更大頻寬? 33621A 120MHz 1channel

庫存量:來電洽詢

建議維修校驗選項:

R-51B-001-3C 是德原廠三年保固

R-50C-011-3   是德原廠三年校驗



*選項與選配

33611A-MEM Add 64 M samples memory per channel
33611A-OCX Add high-stability OCXO timebase
33611A-SEC Enable NISPOM and file security
33611A-Z54 ANSI/NCSL Z540.3-2006 Calibration
3446GPBU 適用於 1 和 2 通道 33600A 系列波形產生器型號
