被動式探棒Passive Probes

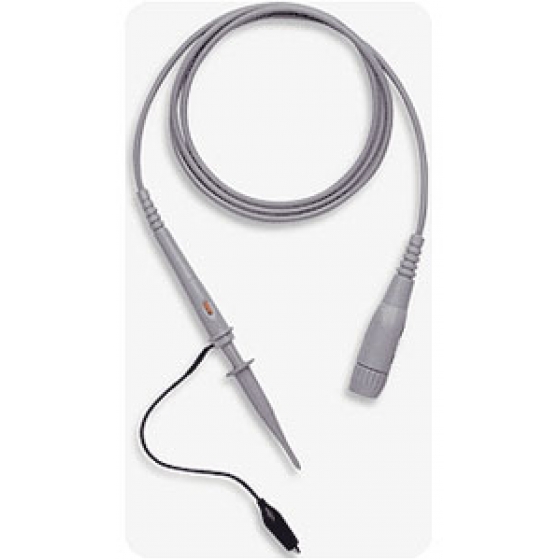

10073D 10:1, 500 MHz, 1.5 m被動式探棒

頻寬500MHz 衰減率10:1 耐壓400 Vpk

目前上市/現已支援

庫存: 來電洽詢
主要特點

Keysight 10073D 10:1, 500 MHz, 1.5 m被動式探棒

推薦使用頻寬500MHz 衰減比10:1,長度1.5公尺的10073D示波器被動式探棒

* Keysight 10073D主要技術規格

- 頻寬: 500 MHz
- 系統上升速度 (calculated): <700 ps
- 衰減比: 10:1
- 輸入阻抗: 2.2 MΩ (when terminated into 1 MOhm)


* 延伸閱讀:查看其他示波器被動式探棒
* 延伸閱讀:查看其他探棒總覽
* 延伸閱讀:[技術文章]示波器探棒挑選大揭密/選購指南



The Keysight 10073D passive probe is our most rugged 500 MHz probe. With a 10:1 attenuation ratio and high 2.2 M ohm input impedance, it is ideal as a general purpose, high bandwidth passive probe for the Keysight 300 MHz - 1 GHz 6000 series, 7000, 8000 and 9000 Series oscilloscopes. The probe identification feature automatically configures the oscilloscope for the probe attenuation.

The following accessories are included: retractable hook tip; orange, white, blue and green identification tags; ground bayonet, IC probing tip, adjustment tool and an alligator clip ground lead.

- Bandwidth: 500 MHz
- System risetime (calculated): <700 ps
- Attenuation Ratio: 10:1
- Input resistance: 2.2 MΩ (when terminated into 1 MOhm)
- Input capacitance: ~12 pF
- Maximum input (dc + peak ac): 500 V CAT I (mains isolated) 300 V CAT II (post receptacle mains)
- Compensation range: 6 - 15 pF
