Keysight RP5900 系列為高整合度的雙向直流電源供應器，可切換電子負載功能。提供 1U 與 2U 尺寸，輸出功率範圍涵蓋 2 kW 至 12 kW。
其再生式架構（Regenerative）可吸收電流回饋電網，有效降低整體用電量與冷卻成本。整合的電子負載功能也有助於節省成本和空間，並減少原本必要的系統整合時間。


RP5900 系列可協助您：


• 提供完整的再生式負載與電源解決方案，因應多元測試需求。
• 支援 80 V、500 V、800 V 電壓選項，電流最高達 ±240 A，涵蓋廣泛應用。
• 提供 2,000 W 至 12,000 W 的寬功率範圍，滿足由小型到高功率的測試情境。
• 無縫運作於雙象限模式，可同時作為電源供應器與再生式負載。
• 以 1U / 2U 業界領先的高密度設計有效提升機架利用率。
• 透過最多 16 台的平行堆疊連接節省機架空間並擴充輸出能力。
• 以再生式架構將能量回饋電網，降低營運成本。
• 透過內建波形產生功能，加速電池與動態負載測試流程。



---

▼ RP591xA 2.5 kW Models，1U, full rack width：

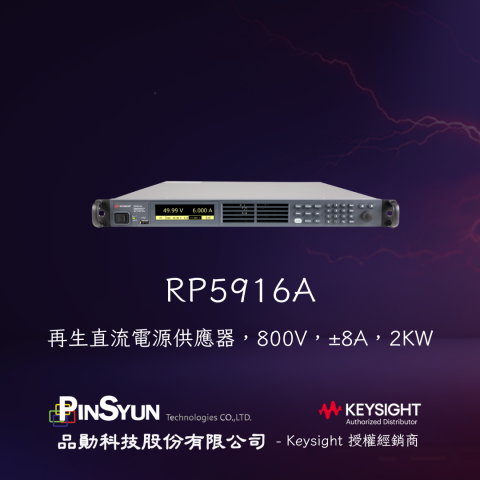

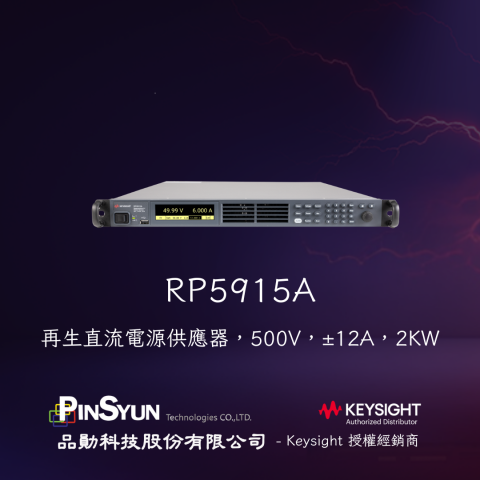

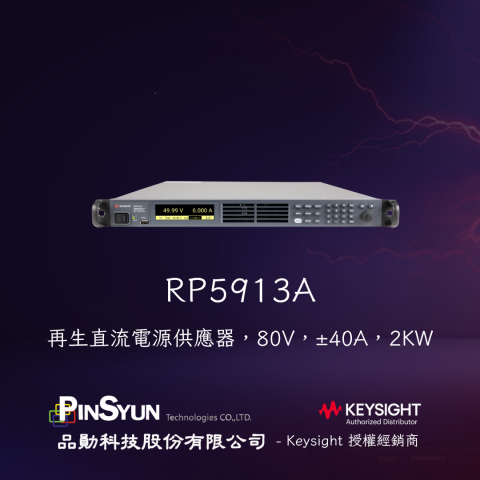

Specification	RP5913A		RP5915A		RP5916A
	Source	Load	Source	Load	Source	Load
DC Ratings
Voltage	0 to 80 V	0 to 80 V	0 to 500 V	0 to 500 V	0 to 800 V	0 to 800 V
Current	0 to ±40 A	0 to 40 A	0 to ±12 A	0 to 12 A	0 to ±8 A	0 to 8 A
Power	0 to ±2 kW	0 to 2 kW	0 to ±2 kW	0 to 2 kW	0 to ±2 kW	0 to 2 kW
Load Transient Recovery Time
Recovery time	≤ 1 ms	-	≤ 1 ms	-	≤ 1 ms	-
Settling band	0.8 V	-	5 V	-	8 V	-

▼ RP592xA 4 kW Models，1U, full rack width：


Specification	RP5923A		RP5925A		RP5926A
	Source	Load	Source	Load	Source	Load
DC Ratings
Voltage	0 to 80 V	0 to 80 V	0 to 500 V	0 to 500 V	0 to 800 V	0 to 800 V
Current	0 to ±80 A	0 to 80 A	0 to ±24 A	0 to 24 A	0 to ±16 A	0 to 16 A
Power	0 to ±4 kW	0 to 4 kW	0 to ±4 kW	0 to 4 kW	0 to ±4 kW	0 to 4 kW
Load Transient Recovery Time
Recovery time	≤ 1 ms	-	≤ 1 ms	-	≤ 1 ms	-
Settling band	0.8 V	-	5 V	-	8 V	-

▼ RP593xA 6 kW Models，1U, full rack width：

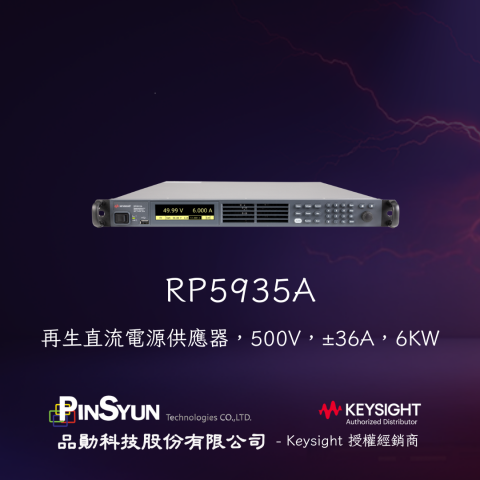

Specification	RP5933A		RP5935A		RP5936A
	Source	Load	Source	Load	Source	Load
DC Ratings
Voltage	0 to 80 V	0 to 80 V	0 to 500 V	0 to 500 V	0 to 800 V	0 to 800 V
Current	0 to ±120 A	0 to 120 A	0 to ±36 A	0 to 36 A	0 to ±24 A	0 to 24 A
Power	0 to ±6 kW	0 to 6 kW	0 to ±6 kW	0 to 6 kW	0 to ±6 kW	0 to 6 kW
Load Transient Recovery Time
Recovery time	≤ 1 ms	-	≤ 1 ms	-	≤ 1 ms	-
Settling band	0.8 V	-	5 V	-	8 V	-

▼ RP594xA 12 kW Models，2U, full rack width：

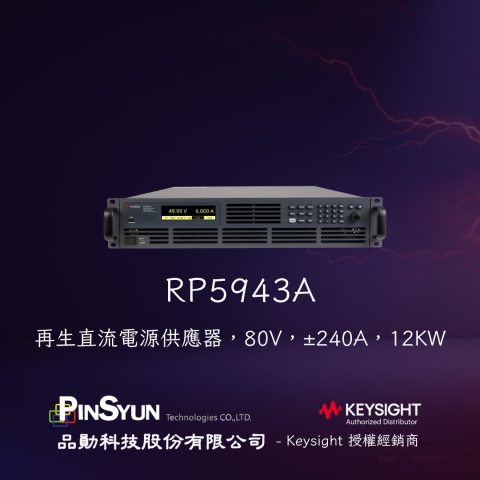

Specification	RP5943A		RP5945A		RP5946A
	Source	Load	Source	Load	Source	Load
DC Ratings
Voltage	0 to 80 V	0 to 80 V	0 to 500 V	0 to 500 V	0 to 800 V	0 to 800 V
Current	0 to ±240 A	0 to 240 A	0 to ±72 A	0 to 72 A	0 to ±48 A	0 to 48 A
Power	0 to ±12 kW	0 to 12 kW	0 to ±12 kW	0 to 12 kW	0 to ±12 kW	0 to 12 kW
Load Transient Recovery Time
Recovery time	≤ 1 ms	-	≤ 1 ms	-	≤ 1 ms	-
Settling band	0.8 V	-	5 V	-	8 V	-
