產品型號 | 說明 | 速度 | 最大電壓 | 最大電流 | 其他說明 |
(Ch/sec) | (Volts) | (Amps) | |||
DAQM900A | 20 通道固態多工器 | 450 | 120 V | 0.02 A | |
DAQM901A | 20 通道多工器(2 線/4 線)模組 | 80 | 300 V | 1 A | 內建冷接面參考2 個額外的電流通道(共 22 個) |
DAQM902A | 16 通道多工器(2 線/4 線)模組 | 250 | 300 V | 50 mA | 內建冷接面參考 |
DAQM903A | 20 通道致動器/GP 切換模組 | 120 | 300 V | 1 A | |
DAQM904A | 4 x 8 2 線式矩陣模組 | 120 | 300 V | 1 A | |
DAQM905A | 2 GHz 雙 1:4 射頻多工器,50 Ω 模組 | 60 | 42 V | 0.7 A | 1 GHz 頻寬的 BNC 轉 SMB 之轉接器纜線 |
DAQM907A | 兩個 8 位元數位 I/O 埠 | 42 V | 400 mA | 汲極開路 | |
26 位元事件計數器 | 42 V | 可選擇的輸入臨界值 | |||
兩個 16 位元類比輸出 | ±12 V | 10 mA | 每訊框最大 40 mA 總輸出 | ||
DAQM908A | 40 通道單端多工器模組 | 100 | 300 V | 1 A | 內建冷接面參考無 4 線式量測 |
DAQM909A | 4 通道同時取樣模組 | 800* | 36 Vpk | 24 位元解析度,差動輸入,*每秒取樣千次 |

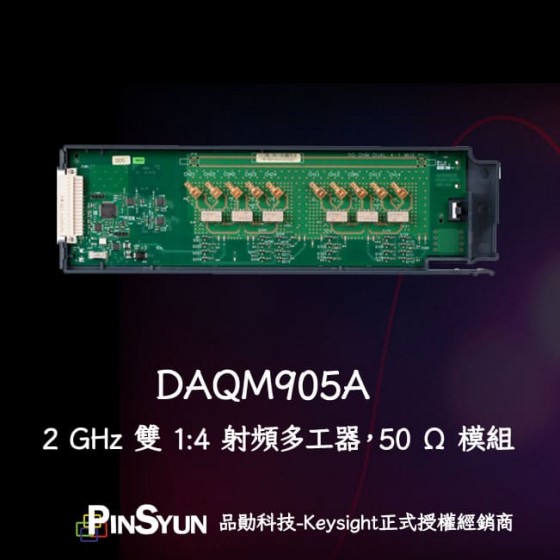

Keysight DAQM905A 射頻多工器模組適用於 DAQ970A/DAQ973A 資料擷取系統,可為高頻和脈衝信號提供寬頻切換功能。您可使用它在待測裝置以及信號產生器、示波器、頻譜分析儀或其它儀器之間,路由測試信號。
此射頻多工器被配置為兩個獨立的 1 x 4 多工器,每個多工器具有公共屏蔽和切換中心導體。您可直接連接到具有 2 GHz 可用頻寬的 SMB 輸入,或連接到具有 1 GHz 頻寬的 BNC 轉 SMB 轉接器。多個 banks 可以堆疊在一起,以因應需要更大拓撲的應用 - 在單一訊框中建立一個 stubless 16:1 多工器。
如需更多關於 DAQ 的資訊,請瀏覽資料擷取 DAQ 網頁。
34307A | 34307A 熱耦套件 |
34308A | 熱敏電阻器套件 |
