* 使用者手冊：
E36300 Series Programmable DC Power Supplies
* 白皮書：- E36313A 160W 三路輸出電源供應器(三通道電源供應器)
- 輸出通道1：電壓0~6V、電流0~10A；輸出通道2&3：電壓0~25V、電流0~2A
- 最大輸出功率：160W
- 讀回解析度：在低電流模式下最低可到2uA
- 多樣化特色 -低電流量測、資料記錄、輸出排序、輸出條列、自動串列/並聯、遠端感測、數位 I/O 埠和背板連接
- 透過 LAN/LXI、USB 和 GPIB（選配）連接介面加快測試速率、支援 SCPI 程式設計，暫態響應低於 50 us
- 更有自信地為您的設計提供電源，具有更出色的程控和讀回準確度、卓越的負載和電源穩壓率，以及低漣波和雜訊

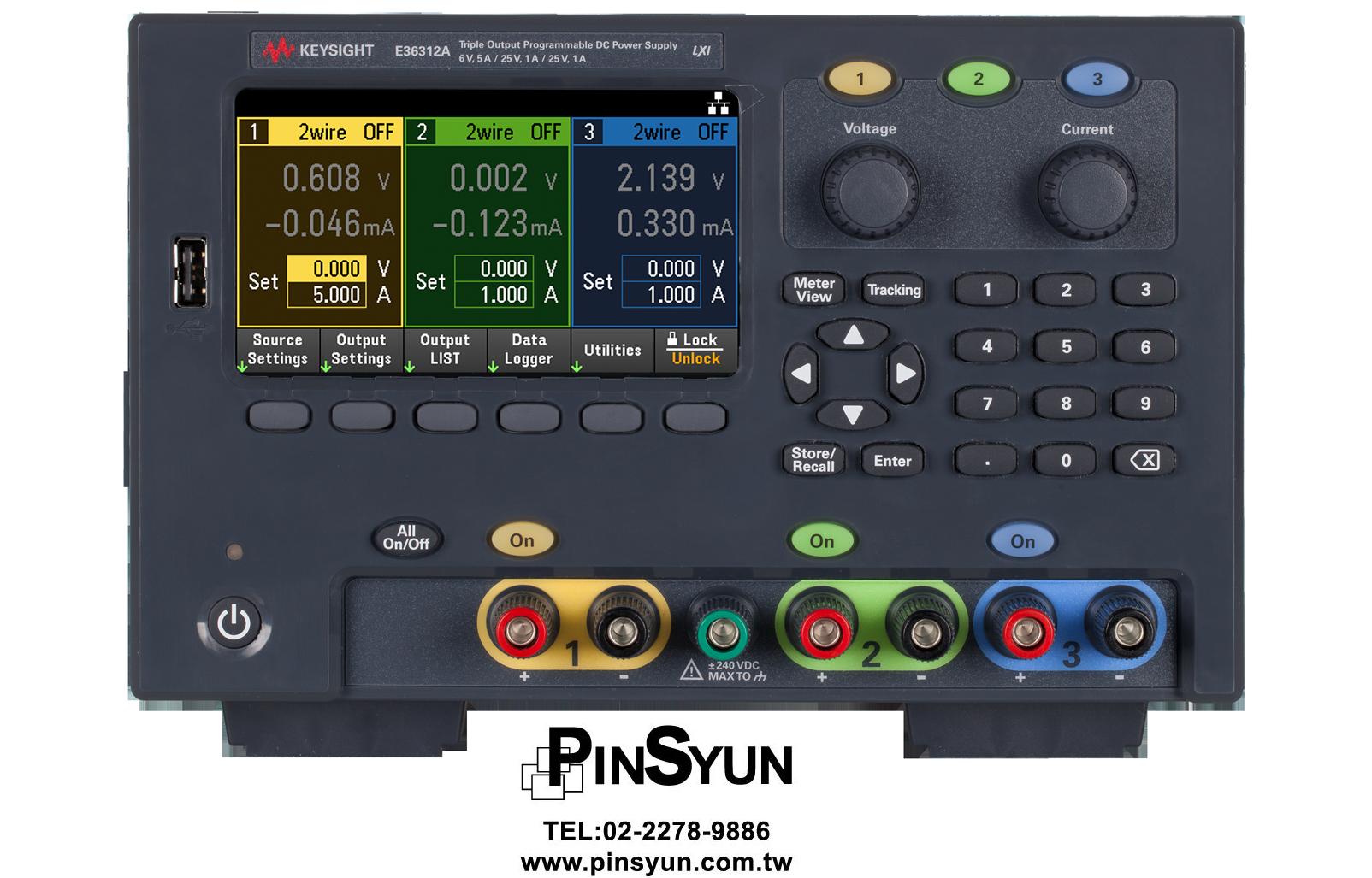

- 直覺和易用的前面板操作大幅提昇了便利性和工作效率
- 4.3 吋 LCD 彩色顯示幕可同時顯示所有三個通道的電壓和電流
- 標示了顏色的通道可簡化手動設定作業
- 兩個獨立的電壓和電流旋鈕和可旋轉的編碼器控制可實現精密設定
- 具備 OVP、OCP、OTP、鍵盤鎖和實體鎖機制，可有效保護為您的待測裝置（DUT）
- 可分別開啟和關閉不同的電氣絕緣輸出通道，以便節省成本和空間
* 延伸閱讀：查看E36100系列低雜訊電源供應器(單通道)
* 延伸閱讀：查看E36300/E36200三組/兩組輸出低雜訊電源供應器總覽
* 延伸閱讀：查看更多其他電源供應器
* 延伸閱讀：查看所有電源供應器&電子負載
* 延伸閱讀：回產品主選單
| Feature | E36311A 80 W Economy Model |
E36312A 80 W Full-Featured Model |
E36313A 160 W High Current Model |
| Channels | Tracking Only | Fully Independent | Fully Independent |
| Electrically isolated channels | Not available | Standard | Standard |
| Remote Sensing | 2 Wire Only | 2 and 4-Wire | 2 and 4-Wire |
| Auto series/parallel | Not available | Standard | Standard |
| Data Logging | Not available | Standard | Standard |
| Output Sequencing | Not available | Standard | Standard |
| List Mode | Not available | Standard | Standard |
| USB port for data logging/storage | Not available | Standard | Standard |
| Digital triggers | Not available | Standard | Standard |

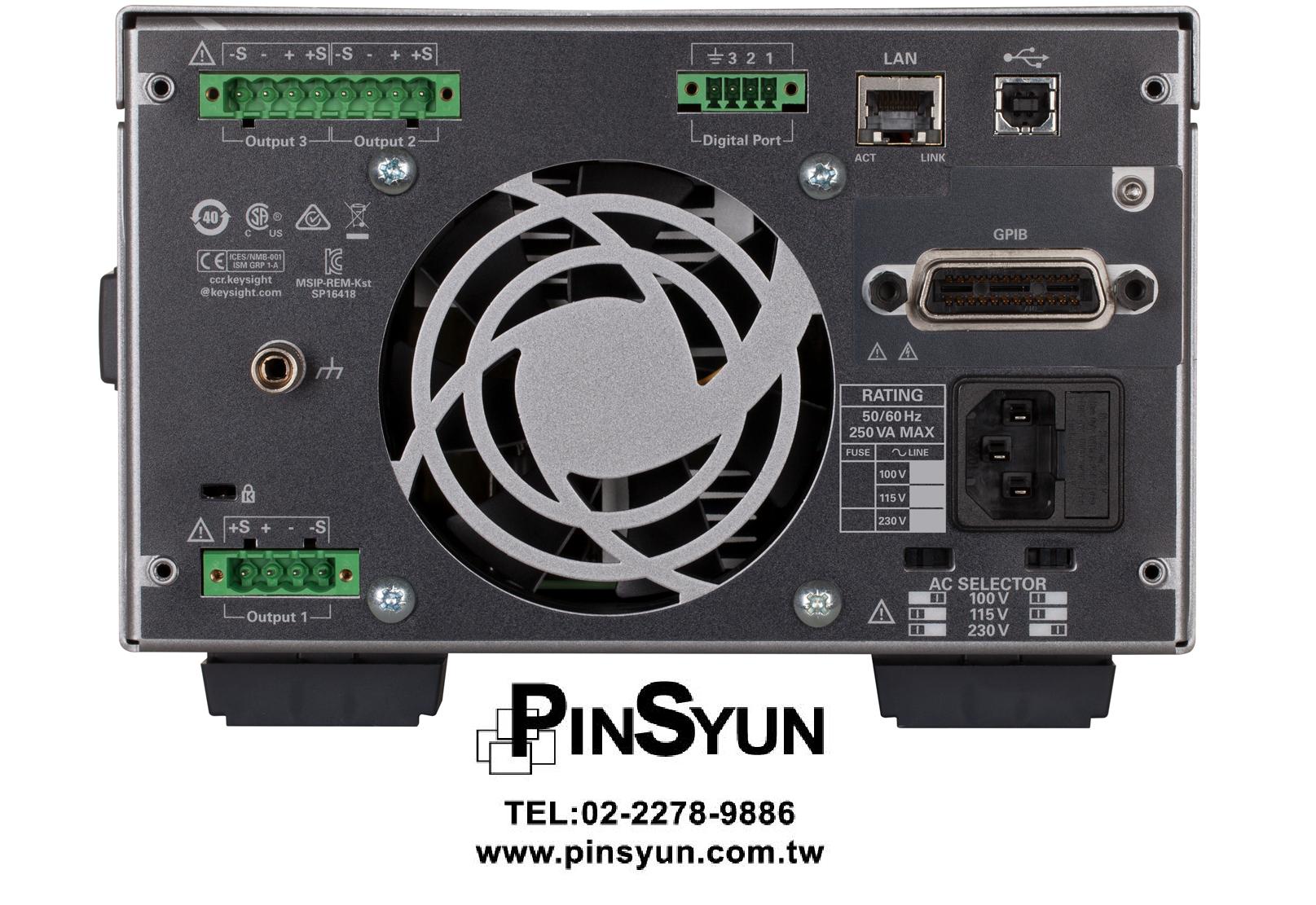

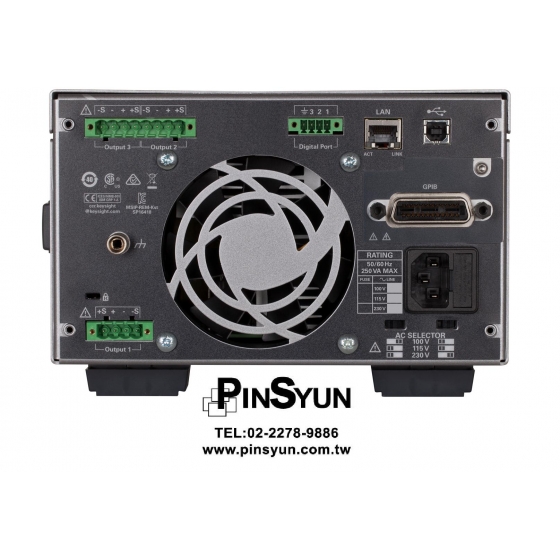

| Rear output terminals | Not available | Standard | Standard |
| Earth ground reference at rear pane |
Not available | Standard | Standard |
| Digital I/O port | Not available | Standard | Standard |
| Connectivity | USB | USB and LAN Standard, GPIB Optional |
USB and LAN Standard, GPIB Optional |
| Recessed binding posts | Optional | Optional | Optional |
| Keypad locking | Standard | Standard | Standard |
| Benchtop lock | Standard | Standard | Standard |
| 1CM104A | Rack mount flange kit 132.6mm H (3U) - two flange brackets- Palette 2015 |
| 1CN107A | Handle kit 132.6mm H (3U) - two front handles- Palette 2015 |
| 1CP108A | Rack mount flange and handle kit 132.6mm H (3U) - two brackets and front handles- Palette 2015 |
| BV0003B | BenchVue Power Supply App |
| E36313A-0E3 | AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz |
| E36313A-0E9 | AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz |
| E36313A-0EM | AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz |
| E36313A-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| E36313A-GPB | GPIB interface module for E36312A, E36313A - installed |
| E36313A-PLT | Plate, GPIB |
| E36313A-RBP | Recessed binding posts |
| E36313A-SEC | NISPOM and File Security for E36300 Series - installed |
| E36313A-UK6 | Commercial calibration certificate with test data |
| E8900-D10 | USB read-only licensing dongle - FLEX10 |
