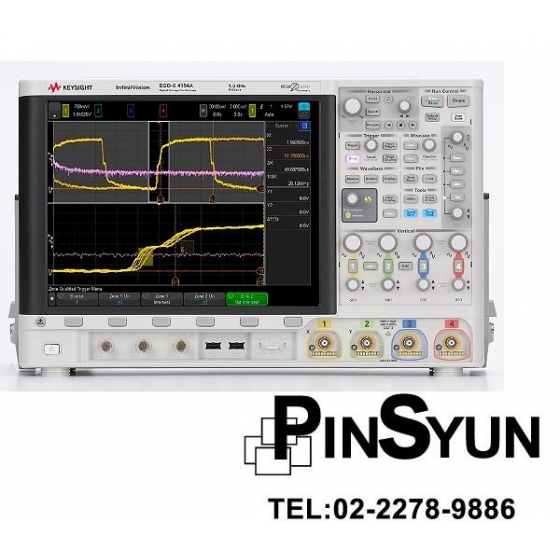

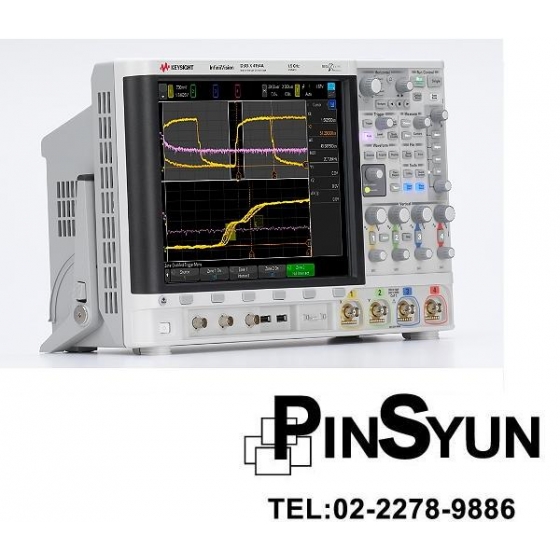

Keysight MSOX4032A 混合信號示波器：350 MHz，2 個類比通道和 16 個數位通道

推薦使用Keysight頻寬350MHz雙通道示波器MSO4032A，搭配功率分析軟體可執行頻率響應分析，自動化出波德圖。還可隨時增加選配，增加20MHz雙通道任意波形產生器。

* Keysight MSOX4032A主要特色與功能

- 頻寬: 350 MHz （頻寬最高可升級到1.5GHz）
- 2 個類比通道和 16 個數位通道
- 12.1 吋大尺寸電容式觸控螢幕，方便您輕鬆檢視信號
- 獨家的區域觸控觸發功能可在短短幾秒內隔離信號
- 4 Mpts 記憶體和標配的分段式記憶體可擷取更多資料
- 每秒 1,000,000 個波形的更新率讓您能清楚查看更多信號細節
- 提供全面的升級能力，您可隨時添加雙通道 20 MHz 任意 WaveGen、串列觸發與分析、遮罩測試、頻率響應分析、USB2.0測試等，以便輕鬆擴充量測功能

** 新品推薦：MSOX4032G 將更多進階功能（WaveGen、遮罩、FRA、串列解碼等）納入標準配置 **

* 更高頻寬的示波器:

- 頻率最高可達6GHz: InfiniiVision 6000 X 系列示波器
- 頻率最高可達8GHz: Infiniium S系列示波器(高解析度示波器)
- 通道數可升級的示波器：EXR系列多通道示波器(頻寬最高2.5GHz)
- 查看可搭配使用之探棒總覽

主要規格
訂購資訊

如需更多資訊：查閱技術規格書

頻寬	350 MHz (最高可升級到1.5GHz)
通道數	2 + 16(數位通道)
最大的記憶體深度	4 Mpts
最大的取樣率	5 GSa/s
螢幕尺寸	12.1 inch capacitive touch
ADC 位元	8 bits
內建儀器（選配）	20 MHz 雙通道任意波型產生器
其他選配功能	- 串列訊號分析(I2C、SPI、USB2.0等) - 功率分析(諧波、頻率響應分析等)

* 延伸閱讀：[技術文章]示波器探棒挑選大揭密/選購指南
* 延伸閱讀：示波器選購指南

Software Application
D4000GENA	Embedded Software Package: I2C, SPI, UART (RS232/422/485), I2S, and USB PD serial trigger and decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
D4000AUTA	Automotive Software Package: CAN, CAN FD, LIN, FlexRay, SENT, CXPI, PSI5 (User-definable Manchester), and User-definable NRZ serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing and Frequency Response Analysis (Bode plots)
D4000AERA	Aero Software Package: MIL-STD 1553 and ARINC 429 serial trigger and decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
D4000USBA	USB Software Package: USB 2.0 Low-, Full-, & Hi-speed, USB PD trigger & decode, plus USB 2.0 Signal Quality Test, Measurement Limit Testing, Mask Limit Testing, and Frequency Response Analysis (Bode plots) 1. USB 2.0 hi-speed trigger & decode supported on ≥ 1-GHz models only. 2. USB 2.0 hi-speed signal quality tests supported on 1.5-GHz models only.
D4000PWRA	Power Software Package: Power quality, current harmonics, switching loss, turn-on/off time, transient response, loop response, PSRR, & more, plus Measurement Limit Testing, Mask List Testing, Frequency Response Analysis (Bode plots), and USB PD serial trigger & decode
D4000NFCA	NFC Software Package: NFC triggering and PC-based NFC automated test software
D4000BDLA	Ultimate Bundle Software Package: I2C, SPI, UART, I2S, CAN, CAN FD, LIN, FlexRay, CXPI, PSI5 (User-definable Manchester), User-definable NRZ, USB 2.0 low-, full-, & hi-speed 1 , USB PD, MIL-STD 1553, and ARINC 429 serial trigger & decode, plus USB 2.0 Signal Quality Test2, Power Analysis, Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), Enhanced Video Analysis, NFC trigger & automated test software
