2022年度全新推出InfiniiVision 3000G系列示波器，標配任意波型產生器、頻率響應分析功能！
* 延伸查看：查看其他 3000T 系列示波器
* 延伸查看：查看螢幕更大 4000X 系列
* 延伸查看：示波器白皮書
* 延伸查看：可搭配的探棒
如需更多資訊：查閱技術規格書

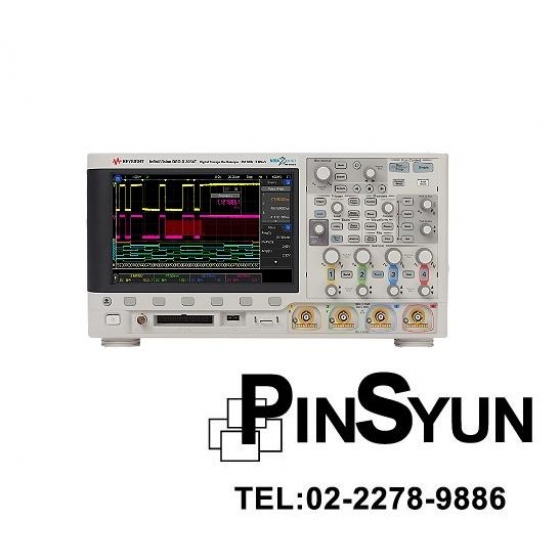

| 頻寬 | 200 MHz(最高可升級為1GHz) |
| 通道數 | 4 (類比通道) + 16(數位通道) |
| 最大的記憶體深度 | 4 Mpts (內建分段式記憶體功能) |
| 最大的取樣率 | 5 GSa/s |
| ADC位元 | 8 Bits |
- 標準 3 年保固（被動式探棒等無序號配件提供 90 天保固）
- 每通道標配一支 N2843A 被動式探棒，500 MHz，10:1 衰減比
- 標配一條 N2756A 16 數位通道 MSO 纜線
- 操作介面和內建輔助説明支援英文、簡體中文、繁體中文、捷克文、法文、德文、義大利文、日文、韓文、葡萄牙文、俄文、西班牙文、波蘭文、泰文和土耳其文
- 適用於不同國家的電源線和套板
* 延伸查看：查看其他 3000T 系列示波器
* 延伸查看：查看螢幕更大 4000X 系列
* 延伸查看：示波器白皮書
* 延伸查看：可搭配的探棒
| License | |||
| D3000GENA | I2C, SPI, UART (RS232/422/485), I2S, and USB PD serial trigger and decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis | ||
| D3000AUTA | CAN (symbolic with .dbc file), CAN FD (symbolic with .dbc file), LIN (symbolic with .ldf file), FlexRay, SENT, CXPI, PSI5 (user-definable Manchester), and Userdefinable NRZ serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing (CAN/CAN FD mask files available to download) and Frequency Response Analysis (Bode plots) | ||
| D3000AERA | MIL-STD 1553 and ARINC 429 serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing (standard mask files available to download), Frequency Response Analysis (Bode plots), and Enhanced Video Analysis | ||
| D3000PWRA | Power quality, current harmonics, switching loss, transient response, turn-on/off time, output ripple, efficiency, loop response, PSRR, etc., plus Measurement Limit Testing, Mask Limit Testing and Frequency Response Analysis (Bode plots), and USB PD serial trigger & decode | ||
| D3000NFCA | NFC trigger and PC-based automated test software | ||
| D3000BDLA | I2C, SPI, UART, I2S, CAN, CAN FD, LIN, FlexRay, CXPI, PSI5 (User-definable Manchester), User-definable NRZ, USB PD, MIL-STD 1553, and ARINC 429 serial trigger & decode, plus Power Analysis, Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), Enhanced Video Analysis, NFC trigger & automated test software | ||
| DSOX3WAVEGEN | WaveGen 20 MHz Function/Arbitrary Waveform Generator | ||
| DSOXT3SECA | Disable non-volatile memory, USB, LAN, and firmware upgrades | ||
| DSOXLAN | Plug-in module to support LAN and VGA connectivity | ||
| DSOXGPIB | Plug-in module to support GP-IB connectivity | ||
