手持式微波分析儀/頻譜/網儀/天線分析儀
N9912C FieldFox 手持式射頻分析儀,高達 10 GHz
FieldFox 和 HSA 手持式頻譜分析儀

Video Preview

N9912C FieldFox Handheld RF Analyzer, up to 10 GHz
庫存: 來電洽詢
主要特點

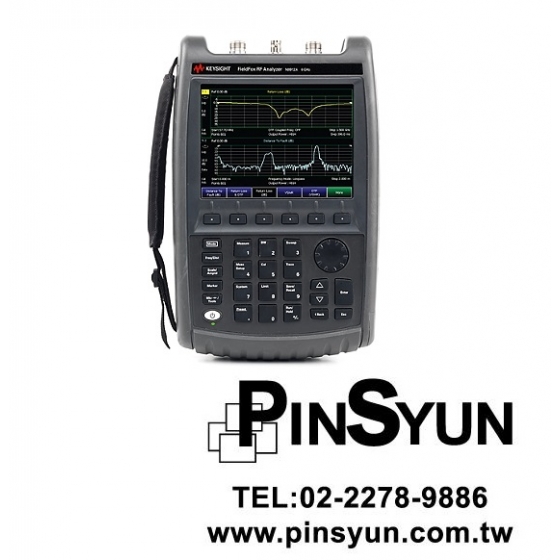

Keysight N9912C FieldFox Handheld RF Analyzer, up to 10 GHz

推薦使用頻率高達10GHz的全新升級手持式頻譜分析儀、手持式天線分析儀N9912C。提供測試信號,用於量測覆蓋範圍、天線隔離度、長電纜損耗、頻偏和對準天線方向

Keysight N9912C主要技術規格

- 從纜線與天線分析儀(CAT)、向量網路分析儀(VNA)和/或頻譜分析儀中,選擇所需的最大頻率
- 以高達 40 MHz 的無間隙即時頻寬,擷取飄忽不定的信號
- 以 115 dB 動態範圍同時量測 4 個 S 參數
- 無需暖機即可進行準確的頻譜分析儀量測(± 0.3 dB)
- 對 5G NR 和 LTE 執行 OTA 量測
- 使用 GPS/GNSS 進行地理定位並加註時間戳記
- 重量僅 3.4 公斤


* 延伸查看:其他N991X系列手持式微波分析儀
* 延伸查看:桌上型網路分析儀
* 延伸查看:桌上型頻譜分析儀
* 延伸閱讀:[技術文章] 使用頻譜分析儀執行EMI相符性量測與克服現場測試時微波干擾信號挑戰


The Keysight N9912C FieldFox Handheld Analyzer addresses this challenge by enabling engineers to mix-and-match software applications for their specific analysis needs on a single, handheld device. As a truly software-defined instrument, the FieldFox N9912C is fully upgradable with license-key activated maximum frequencies, analyzer types, bandwidths, and software applications.

The new FieldFox C-model, covering up to 10 GHz, offers the following benefits:

- Mix and match options – Offers unparalleled flexibility to create the right mix of VNA, CAT, and SA tools for any project's requirements with more than 20 downloadable software applications and license key activated frequency and bandwidth options. In addition, the maximum frequency coverages for any analyzer type are extendable for any existing N9912C by ordering an upgrade option.
- Pay only for what you need – Optimizes field instrument investment by enabling engineers to choose only the capabilities they need for their work in the field.
- Save time in the field with a single handheld – Eliminates the need to switch instruments with a single, rugged handheld analyzer that can be customized on the fly as testing needs evolve.
- High-performance analysis – Provides accurate, comprehensive spectrum and network analysis down to 3 kHz and up to 10 GHz, to test and troubleshoot a wide range of high frequency and wireless applications.

隨附的配件:

- 直流/交流轉接器
- 當地適用的電源線
- 可充電式鋰電池
- 軟質攜帶包,配有背包和肩帶
- 快速參考指南
