網路分析儀
85514A四合一機械校驗套件, 直流到9GHz, N-Type(公)

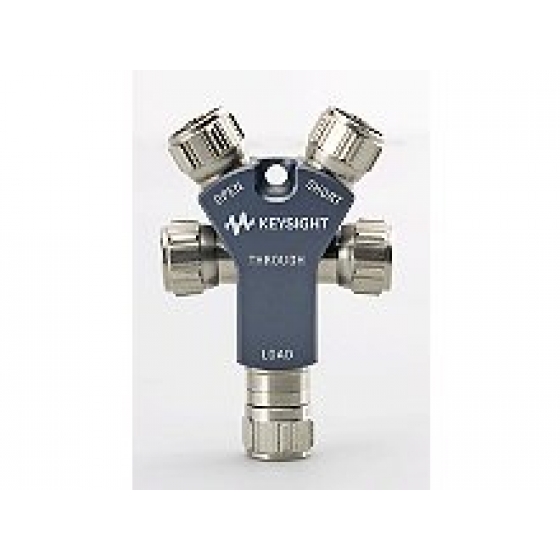

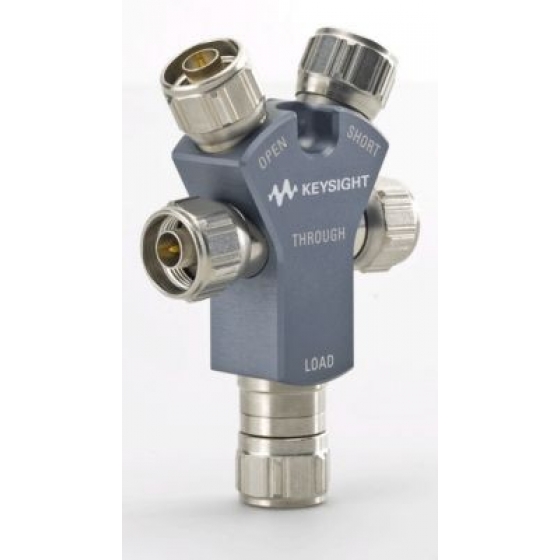

The 85514A 4-in-1 mechanical calibration module combines an open, short, load, and through in a compact unit. The product is small, easy to handle, and light weight. The through allows users to easily calibrate non-insertable devices, such as a cable or filter with male-male connectors. During the "thru" part of the calibration, the 85514A through can be used.

目前上市/現已支援

庫存: 來電洽詢
主要特點

Keysight 85514A四合一機械校驗套件, 直流到9GHz, N-Type(公)

推薦使用85514A四合一機械校驗套件, 頻率範圍可從直流到9GHz, 接頭形式為N-Type(公)

Keysight 85514A主要技術規格

- Type-N (m), 50 ohm, open, short, load, and through
- DC to 9 GHz
- Open phase error: 0 to 4 GHz ≤ 2.0°, 4 to 9 GHz ≤ 3.0°
- Short phase error: 0 to 9 GHz ≤ 1.25°
- Load return loss: 0 to 6 GHz ≥ 42 dB, 6 to 9 GHz, ≥ 35 dB
- Through, male-male, insertion loss: 0 to 4 GHz ≤ 0.05 dB, 4 to 9 GHz ≤ 0.1 dB
- Dimensions: H x W x D ~ 99 x 65 x 22 mm


* 可搭配使用的網儀:
- 桌上型E5063A:ENA 系列網路分析儀
- 桌上型E5061B:ENA 系列網路分析儀
- 手持式系列:FieldFox 手持式微波分析測試儀
- 攜帶型:USB 網路分析儀

* 延伸閱讀:查看更多其他校正器
* 延伸閱讀:[操作影片] Keysight ENA系列網路分析儀及機械式校正器操作教學

The 85514A 4-in-1 mechanical calibration module combines an open, short, load, and through in a compact unit. The product is small, easy to handle, and light weight. The through allows users to easily calibrate non-insertable devices, such as a cable or filter with male-male connectors. During the "thru" part of the calibration, the 85514A through can be used.

* 可搭配使用的網儀:
- 桌上型E5063A:ENA 系列網路分析儀
- 桌上型E5061B:ENA 系列網路分析儀
- 手持式系列:FieldFox 手持式微波分析測試儀
- 攜帶型:USB 網路分析儀

* 延伸閱讀:查看更多其他校正器
* 延伸閱讀:[操作影片] Keysight ENA系列網路分析儀及機械式校正器操作教學
庫存量:來電洽詢


*選項與選配


85514A-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
85514A-A6J ANSI Z540-1-1994 Calibration
85514A-UK6 Commercial calibration certificate with test data
