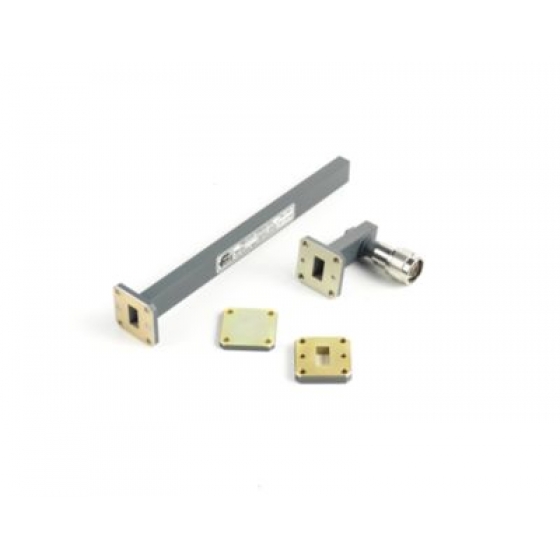

Keysight N9911X 經濟型波導校驗元件

Keysight N9911X 是用於 FieldFox CAT 和 VNA 校驗的經濟型波導元件。N9911X 校驗套件定義內建於 FieldFox 韌體中，並可從 FieldFox 的校驗套件網站中下載。

Keysight N9911X主要技術規格

- 波導至同軸轉接器、端子、嵌入式短路器（flush short）、四分之一波長偏移
- WR-137：5.38 至 8.18 GHz
- WR-90：8.2 至 12.5 GHz
- WR-62：11.9 至 18 GHz
- WR-42：17.6 至 26.7 GHz
- 包括公制和英制凸緣尺寸

主要規格
訂購資訊

N9911X-110	Waveguide to coaxial adapter, calibration grade, WR-137 to Type-N (m), metric flange, 5.38 to 8.18 GHz
N9911X-111	Termination, calibration grade, WR-137, metric flange, 5.38 to 8.18 GHz
N9911X-112	Flush short, calibration grade, WR-137, metric flange, 5.38 to 8.18 GHz
N9911X-113	1/4 wavelength offset, calibration grade, WR-137, metric flange, 5.38 to 8.18 GHz
N9911X-114	Coupling set for WR-137, metric flange, 5.38 to 8.18 GHz
N9911X-115	Waveguide to coaxial adapter, calibration grade, WR-137 to Type-N (m), imperial flange, 5.38 to 8.18 GHz
N9911X-116	Termination, calibration grade, WR-137, imperial flange, 5.38 to 8.18 GHz
N9911X-117	Flush short, calibration grade, WR-137, imperial flange, 5.38 to 8.18 GHz
N9911X-118	1/4 wavelength offset, calibration grade, WR-137, imperial flange, 5.38 to 8.18 GHz
N9911X-119	Coupling set for WR-137, imperial flange, 5.38 to 8.18 GHz
N9911X-210	Waveguide to coaxial adapter, calibration grade, WR-90 to Type-N (m), metric flange, 8.2 to 12.5 GHz
N9911X-211	Termination, calibration grade, WR-90, metric flange, 8.2 to 12.5 GHz
N9911X-212	Flush short, calibration grade, WR-90, metric flange, 8.2 to 12.5 GHz
N9911X-213	1/4 wavelength offset, calibration grade, WR-90, metric flange, 8.2 to 12.5 GHz
N9911X-214	Coupling set for WR-90, metric flange, 8.2 to 12.5 GHz
N9911X-215	Waveguide to coaxial adapter, calibration grade, WR-90 to Type-N (m), imperial flange, 8.2 to 12.5 GHz
N9911X-216	Termination, calibration grade, WR-90, imperial flange, 8.2 to 12.5 GHz
N9911X-217	Flush short, calibration grade, WR-90, imperial flange, 8.2 to 12.5 GHz
N9911X-218	1/4 wavelength offset, calibration grade, WR-90, imperial flange, 8.2 to 12.5 GHz
N9911X-219	Coupling set for WR-90, imperial flange, 8.2 to 12.5 GHz
N9911X-310	Waveguide to coaxial adapter, calibration grade, WR-62 to Type-N (m), metric flange, 11.9 to 18 GHz
N9911X-311	Termination, calibration grade, WR-62, metric flange, 11.9 to 18 GHz
N9911X-312	Flush short, calibration grade, WR-62, metric flange, 11.9 to 18 GHz
N9911X-313	1/4 wavelength offset, calibration grade, WR-62, metric flange, 11.9 to 18 GHz
N9911X-314	Coupling set for WR-62, metric flange, 11.9 to 18 GHz
N9911X-315	Waveguide to coaxial adapter, calibration grade, WR-62 to Type-N (m), imperial flange, 11.9 to 18 GHz
N9911X-316	Termination, calibration grade, WR-62, imperial flange, 11.9 to 18 GHz
N9911X-317	Flush short, calibration grade, WR-62, imperial flange, 11.9 to 18 GHz
N9911X-318	1/4 wavelength offset, calibration grade, WR-62, imperial flange, 11.9 to 18 GHz
N9911X-319	Coupling set for WR-62, imperial flange, 11.9 to 18 GHz
N9911X-410	Waveguide to coaxial adapter, calibration grade, WR-42 to 3.5 mm (m), metric flange, 17.6 to 26.7 GHz
N9911X-411	Termination, calibration grade, WR-42, metric flange, 17.6 to 26.7 GHz
N9911X-412	Flush short, calibration grade, WR-42, metric flange, 17.6 to 26.7 GHz
N9911X-413	1/4 wavelength offset, calibration grade, WR-42, metric flange, 17.6 to 26.7 GHz
N9911X-414	Coupling set for WR-42, metric flange, 17.6 to 26.7 GHz
N9911X-415	Waveguide to coaxial adapter, calibration grade, WR-42 to 3.5 mm (m), imperial flange, 17.6 to 26.7 GHz
N9911X-416	Termination, calibration grade, WR-42, imperial flange, 17.6 to 26.7 GHz
N9911X-417	Flush short, calibration grade, WR-42, imperial flange, 17.6 to 26.7 GHz
N9911X-418	1/4 wavelength offset, calibration grade, WR-42, imperial flange, 17.6 to 26.7 GHz
N9911X-419	Coupling set for WR-42, imperial flange, 17.6 to 26.7 GHz

Keysight N9911X 是用於 FieldFox CAT 和 VNA 校驗的經濟型波導元件。N9911X 校驗套件定義內建於 FieldFox 韌體中，並可從 FieldFox 的校驗套件網站中下載。

庫存量：來電洽詢
