85515A

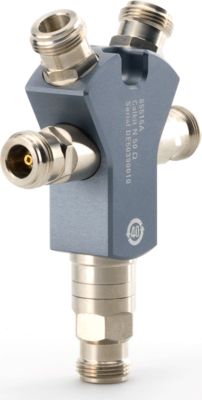

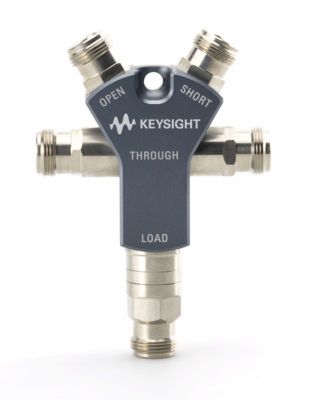

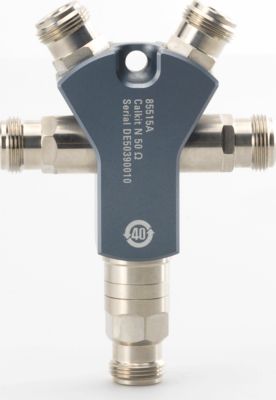

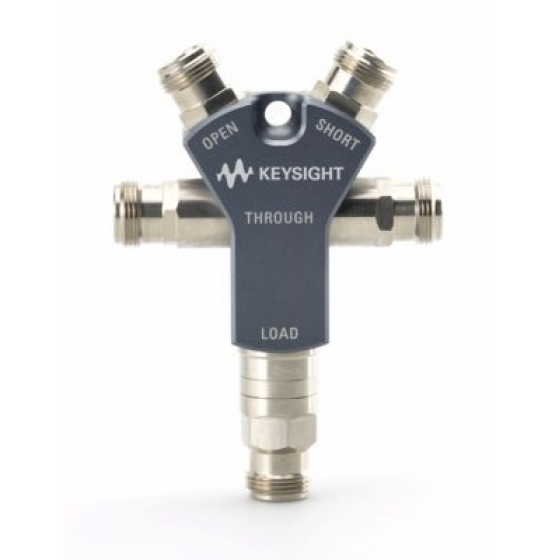

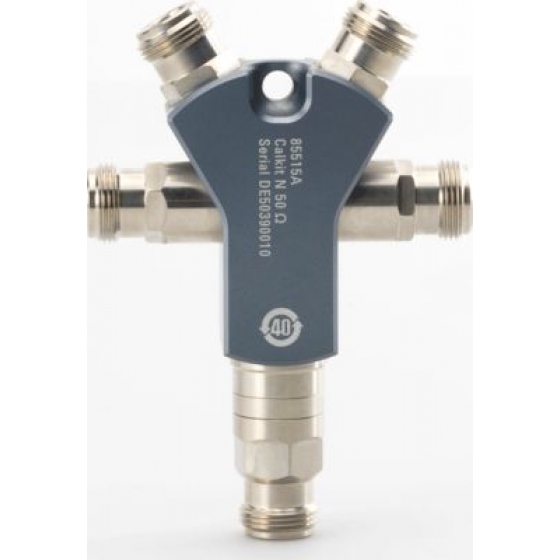

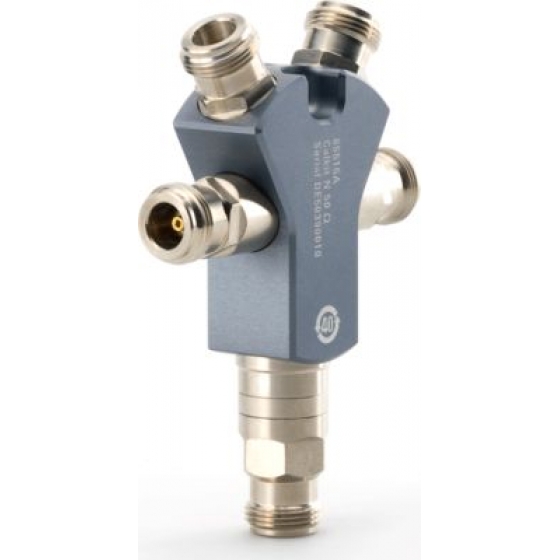

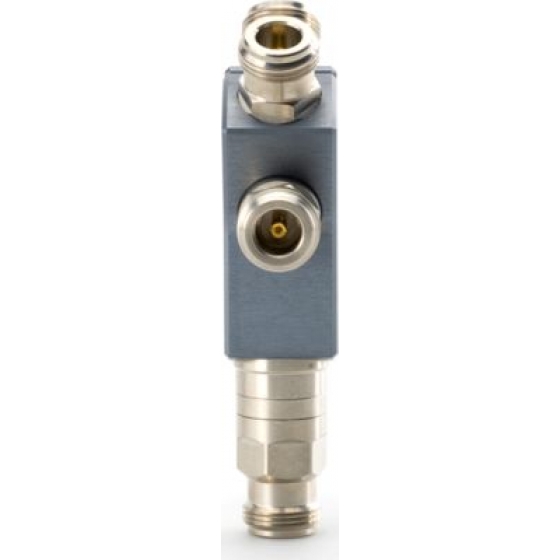

The 85515A 4-in-1 mechanical calibration module combines an open, short, load, and through in a compact unit. The product is small, easy to handle, and light weight. The through allows users to easily calibrate non-insertable devices, such as a cable or filter with female-female connectors. During the “thru” part of the calibration, the 85515A through can be used.


目前上市/現可支援
產品詳細介紹

  目前上市/現可支援
主要規格:4-in-1 OSLT Mechanical Calibration Kit,DC to 9 GHz, Type-N(f), 50 ohm



85515A-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
85515A-A6J ANSI Z540-1-1994 Calibration
85515A-UK6 Commercial calibration certificate with test data




  • *主要技術規格:

    • Type-N (f), open, short, load, and through
    • DC to 9 GHz
    • Open phase error: 0 to 4 GHz ≤ 2.0°, 4 to 9 GHz ≤ 3.0°
    • Short phase error: 0 to 9 GHz ≤ 1.25°
    • Load return loss: 0 to 6 GHz ≥ 42 dB, 6 to 9 GHz, ≥ 35 dB
    • Through, female-female, insertion loss: 0 to 4 GHz ≤ 0.05 dB, 4 to 9 GHz ≤ 0.1 dB
    • Dimensions: H x W x D ~ 104 x 74 x 22 mm



  •

    庫存量:來電洽詢


    85515A-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
    85515A-A6J ANSI Z540-1-1994 Calibration
    85515A-UK6 Commercial calibration certificate with test data
  • 85515A 4-in-1 OSLT Mechanical Calibration Kit Data Sheet
