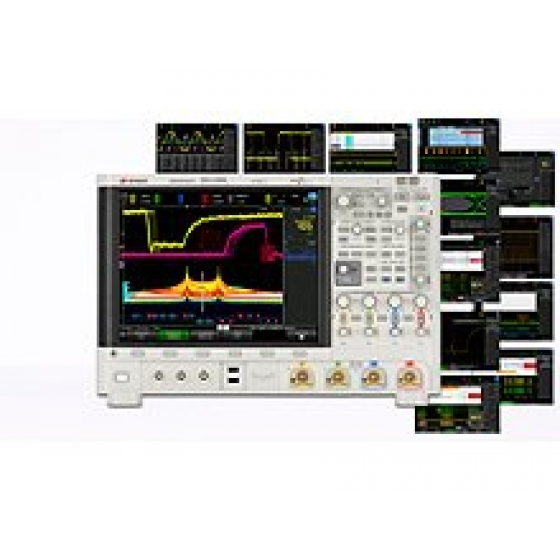

InfiniiVision 6000X 系列示波器的應用軟體套裝套件

此軟體選項可支援 InfiniiVision 6000 X 系列示波器的所有應用軟體。

  • Enables 17 software applications
  • Can be ordered at any time to add capability to a 6000 X-Series oscilloscope

 目前上市/現可支援

產品詳細介紹

Measurement applications


  • DSOX6JITTER Jitter and real-time eye diagram analysis
  • DSOX6WAVEGEN2 Dual-channel WaveGen 20-MHz AWG
  • DSOXDVMCTR Integrated Digital Voltmeter and 10-digit counter
  • DSOX6PWR Power application
  • DSOX6MASK Mask limit testing
  • DSOX6USBSQ USB 2.0 signal quality test
  • DSOX6VID Enhanced video/TV application package
  • DSOX6FPGAX FPGA dynamic probe option for Xilinx
  • DSOXEDK Education and training kit

Serial protocols

  • DSOX6EMBD Embedded serial trigger and decode (I²C, SPI)
  • DSOX6COMP Computer serial trigger and decode (RS232/UART)
  • DSOX6USBFL USB 2.0 full-/low-speed serial trigger and decode
  • DSOX6USBH USB 2.0 hi-speed serial trigger and decode
  • DSOX6AUTO Automotive serial trigger and decode (CAN/LIN)
  • DSOX6FLEX FlexRay serial trigger and decode
  • DSOX6AUDIO Audio serial trigger and decode (I²S)
  • DSOX6AERO MIL-STD 1553 and ARINC 429 serial trigger and decode
  •
  • Purchase DSOX6APPBNDL to enable all of the software applications listed above on an InfiniiVision 6000 X-Series oscilloscope.

    ※ 注意:此組合不包含頻寬和MSO選項。

  • 立即購買選項 DSOX6APPBNDL,以便啟用前述的所有 InfiniiVision 6000 X 系列應用軟體。

    各項軟體套件庫存量:請來電洽詢
