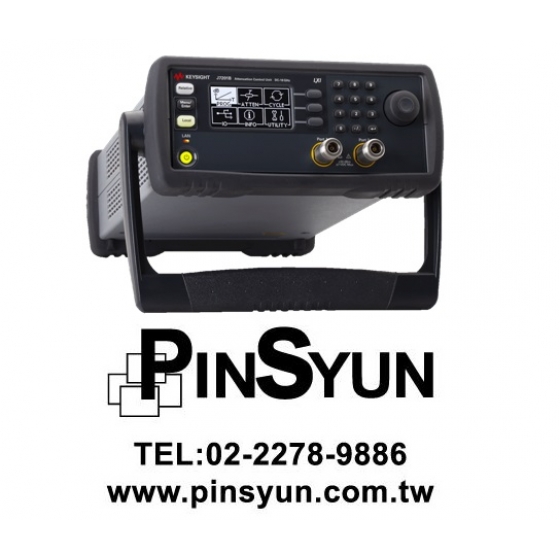

J7211B 衰減控制裝置

DC to 18 GHz, 0 to 121 dB, 1 dB steps

目前上市/現已支援

產品詳細介紹

Attenuator Control Capability

  • Attenuation sweep function – define the sweep time, number of cycles and step size for your application
  • Relative attenuation step function - set attenuation relative to any value
  • Attenuation steps - 0 dB to 121 dB, 121 dB to 0 dB, or back and forth for the preset number of cycles (1 to 1000)
  • User selectable sweep time - 50 ms to 10 s; 50 ms incremental

Specifications

  • 0.03 dB insertion loss repeatability per section for the entire 5 million cycles
  • Excellent attenuation accuracy and flatness

Remote Control and Programming

  • LXI Class C compliant for easy remote integration
  • An integrated attenuation solution for wireless communication

    J7211B attenuation controls unit provide an integrated solution for R&D and manufacturing engineers in wireless communication, aerospace and defense and electronic component industries. Operating from DC to 18 GHz, the J7211B provides attenuation up to 121 dB with a 1 dB step size. A unique attenuation sweep function lets you select start/stop attenuation, step size, dwell time and number of cycles of for your application. J7211B offers exceptional < 0.03 dB insertion loss repeatability per section for the entire 5 million cycles which reduces your cost of ownership.

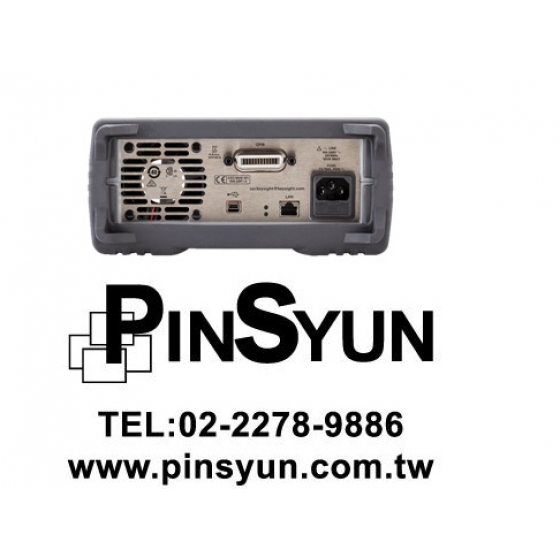

    Designed in a compact half-rack, 2 unit high form factor, the Keysight J7211B ensures ease-of-use in benchtop applications and greater efficiency and throughput in ATE testing. GPIB, USB and LAN connectivity (LXI Class C Compliant) allow easy remote control and triggering.

    Typical Applications

    J7211B attenuation control unit’s attenuation sweep function makes it ideal for designing, validating and manufacturing WiMAX and WLAN components and for mobile handset base transceiver station (BTS) handover test.

    "WiMAX," "Fixed WiMAX," "Mobile WiMAX," "WiMAX Forum," the WiMAX Forum logo, "WiMAX Forum Certified," and the WiMAX Forum Certified logo are trademarks of the WiMAX Forum. All other trademarks are the properties of their respective owners.

  • 庫存量:來電洽詢

    一般配置

    J7211B 0-121 dB integrated attenuation control unit , DC to 18 GHz

    • R-51B-001-C Return to Keysight Warranty - 1 year
    • J7211B-001 Type-N Connector
