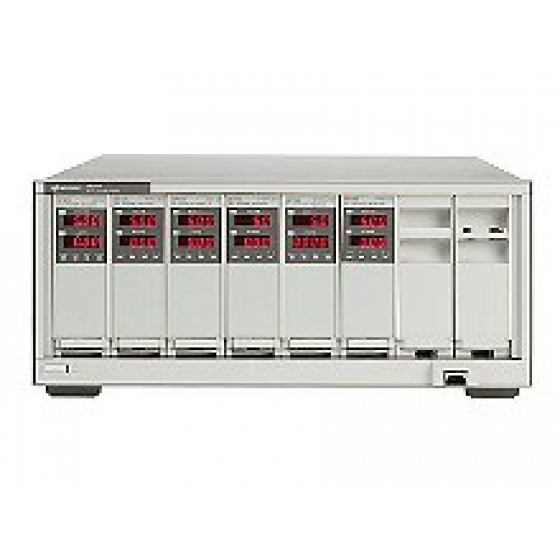

66000A 模組化電源系統主機

66000A 為在任一結合中可接受 1 至 8 個模組以下的 4U、8 插槽主機。模組需要單獨訂購

目前上市/現已支援

產品詳細介紹
  • 1200 W mainframe
  • Modular system permits up to 8 outputs of 150W per output in 4U of rack space
  • Reconfigure fast with easily swappable modules
  • Keysight high performance DC power supplies offer speed and accuracy for test optimization. The Keysight 66000 modular power system simplifies test-system assembly, cabling, programming, debugging and operation. The 66000A is 4 U, 8 slot mainframe that accepts 1 to 8 modules below in any combination. Modules are ordered separately.

  • 模組選配:

    型號 最大功率 電壓 電流
    66101A-J03 128W 5.7V 20A
    66101A 128W 8V 16A
    66101A-J05 128W 12V 12A
    66102A 150W 20V 7.5A
    66103A-J12 150W 24V 6A
    66103A-J09 150W 28.5V 5.5A
    66103A 150W 35V 4.5A
    66103A-J01 150W 37V 4.5A
    66103A-J02 150W 40V 3.6A
    66104A-J09 150W 55V 3A
    66104A 150W 60V 2.5A
    66105A 150W 120V 1.25A
    66105A-J01 44W 35V 1.25A
    66106A 150W 200V 0.75A



    庫存量:來電洽詢

    一般配置

    66000A Modular Power System Mainframe, 1200 W max, 8 slots, GPIB

    • R-51B-001-Z Return to Keysight Warranty - 3 years
  • 66000A 模組化電源系統主機     產品型錄
