被動式探棒Passive Probes
10070D 1:1, 20 MHz, 1.5 m被動式探棒

頻寬20MHz 衰減率1:1 耐壓400 Vpk

目前上市/現已支援

庫存: 來電洽詢
主要特點

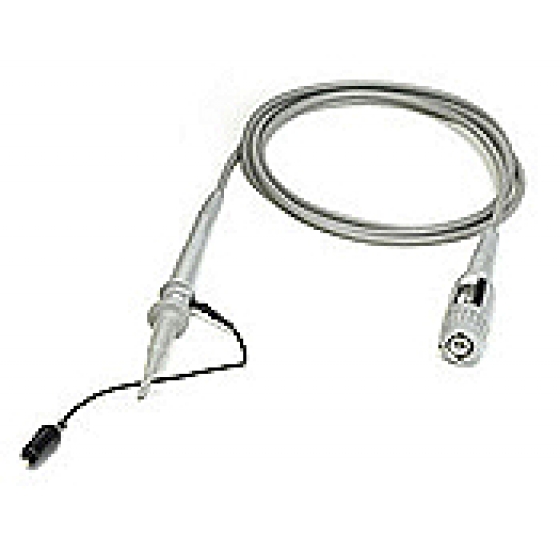

Keysight 10070D 1:1, 20 MHz, 1.5 m被動式探棒

推薦使用頻寬20MHz,衰減比1:1,長度1.5公尺的示波器被動探棒10070D,輸入阻抗為1M歐姆

Keysight 10070D主要技術規格

- 上升時間: <17.5 ns
- 輸入阻抗: 1 MOhm; (when terminated into 1 MOhm;)
- 輸入電容: 70 pF (approximate)


* 延伸閱讀:查看其他示波器被動式探棒
* 延伸閱讀:查看其他探棒總覽
* 延伸閱讀:
[技術文章]示波器探棒挑選大揭密/選購指


The Keysight 10070D 20 MHz passive probe is a great choice if you are looking for high quality at a very reasonable price. This general purpose probe is designed specifically to give you optimal performance with your 3000T, 4000X, 6000X, S-Series and EXR-Series oscilloscopes. Rugged enough for general purpose measurements, the 10070D features a durable cable and a solid stainless steel probe body encased with a hard, fracture-resistant plastic.

- General purpose retractable hook tip - hooks onto wires and test points for hands-free probing
- Ground bayonet - provides short, flexible ground lead for high-frequency measurements
- General purpose alligator clip ground lead - allows for versatile grounding
- Color tags (2 tags in each color: orange, white, blue and green) - by placing tags at both ends of the probe cable, you can quickly identify your probes

For complete details, click on the Probes and Accessories Link

The 10070D is a replacement of the 10070C. The 10070C will be discontinued in June 2011 and will be supported for 5 years until September 2016. The old and new replacements are 100% form, fit, function and price equivalent to the products they replace.
