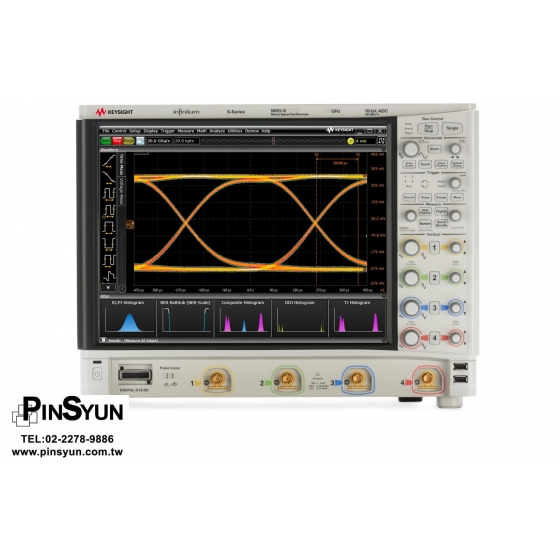

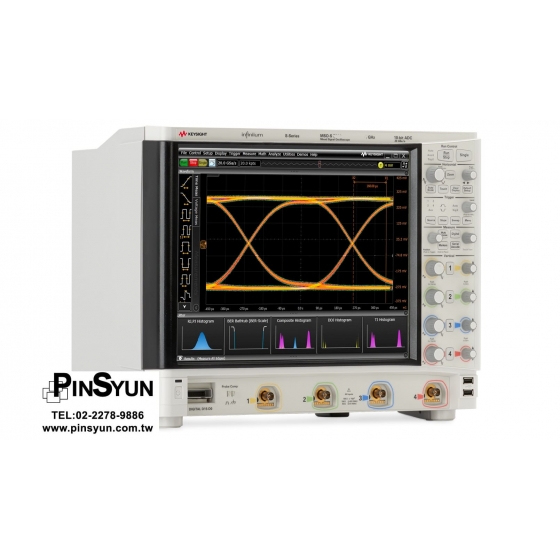

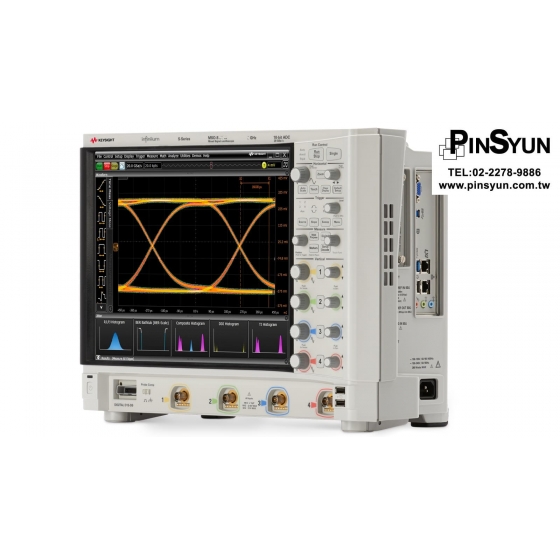

- 6 GHz 頻寬（最高可升級到8GHz）
- 4 個類比通道
- 20 GSa/s 最大取樣率，每通道標配 50 Mpts 記憶體，可擷取更長的信號軌跡
- 6.8 位元系統有效位元（ENOB）和 10 位元類比數位轉換器（ADC），可實現絕佳的信號完整性
- 15 吋多點觸控電容式觸控螢幕大幅提昇易用性，標配的固態硬碟可加速開機並提高可靠度
- 可透過各種協定、相符性測試和分析軟體提昇測試效率
- [量測影片] 使用S系列示波器執行USB 2.0 Device眼圖及Inrush Current測試
* 查看Keysight示波器總覽：Keysight示波器系列
* 查看最新款八通道示波器: Keysight EXR系列
* 查看應用白皮書：評估示波器的訊號完整性keysight應用手冊
如需更多資訊： 查閱技術規格書
| 頻寬 | 6 GHz |
|---|---|
| 通道數 | 4 |
| 最大的記憶體深度 |
800 Mpts (2 channels), 400 Mpts (4 channels) |
| 最大的取樣率 |
20 GSa/s (2 channels), 10 GSa/s (4 channels) |
| ADC 位元 | 10 bits |
* S系列應用資料
1. 車用匯流排 & Ethernet大解析
2. 電軌信號完整性(實機操作)
* [量測影片] 使用S系列示波器執行USB 2.0 Device眼圖及Inrush Current測試
>> 舉辦過之相關研討會: 車聯網暨汽車電子研發測試研討會
* 想看更多keysight是德科技示波器，以獲得精湛量測洞察力嗎？
| DSOS000-821 | Precision BNC to SMA adapters (qty 2) | ||
| Node locked license for version 4.xx | |||
| U1882B-1NL | Power measurement analysis software, node locked license | ||
| N5392C-2NL | Ethernet compliance application with Energy Efficient Ethernet upgrade, node locked license | ||
| N5392C-3NL | Ethernet compliance application only, node locked license | ||
| N5392C-1NL | Ethernet compliance with Energy Efficient Ethernet, node locked license | ||
| N5413C-1NL | DDR2 and LPDDR2 Compliance Test Application, node locked license | ||
| N5413C-2NL | Upgrade for LPDDR2 Compliance Test Application, node locked license | ||
| N5413C-3NL | DDR2 and LPDDR2 Debug Tool, node locked license | ||
| N5416B-1NL | USB 2.0 Compliance Software, node locked license | ||
| N5431B-1NL | XAUI compliance application, node locked license | ||
| U7231C-1NL | DDR3 and LPDDR3 Compliance Software, node locked license | ||
| U7231C-2NL | Upgrade to DDR3 and LPDDR3 Compliance Software, node locked license | ||
| U7231C-3NL | DDR3 and LPDDR3 Debug Tool, node locked license | ||
| N6462B-1NL | DDR4 and LPDDR4 compliance test software, node locked license | ||
| N6462B-3NL | DDR4 Debug Tool, node locked license | ||
| Fixed Perpetual and non-network licenses | |||
| U1882B-1FP | Power measurement analysis software, fixed perpetual license | ||
| U1882B-1TP | Power measurement analysis software, transportable perpetual license | ||
| N5392C-1FP | Ethernet compliance with Energy Efficient Ethernet, fixed perpetual license | ||
| N5392C-1TP | Ethernet compliance with Energy Efficient Ethernet, fixed transportable license | ||
| N5392C-2FP | Ethernet compliance application with Energy Efficient Ethernet upgrade, fixed perpetual license | ||
| N5392C-3FP | Ethernet compliance application only, fixed perpetual license | ||
| N5392C-3TP | Ethernet compliance application only, transportable perpetual license | ||
| N5413C-1FP | DDR2 and LPDDR2 Compliance Test Application, fixed perpetual license | ||
| N5413C-1TP | DDR2 and LPDDR2 Compliance Test Application, transportable perpetual license | ||
| N5413C-2FP | Upgrade for LPDDR2 Compliance Test Application, fixed perpetual license | ||
| N5413C-3TP | DDR2 and LPDDR2 Debug Tool, transportable perpetual license | ||
| N5413C-3FP | DDR2 and LPDDR2 Debug Tool, fixed perpetual license | ||
| N5416B-1FP | USB 2.0 Compliance Software, fixed perpetual license | ||
| N5416B-1TP | USB 2.0 Compliance Software, transportable perpetual license | ||
| N5431B-1FP | XAUI compliance application, fixed perpetual license | ||
| N5431B-1TP | XAUI compliance application, transportable perpetual license | ||
| U7231C-1FP | DDR3 and LPDDR3 Compliance Software, fixed perpetual license | ||
| U7231C-1TP | DDR3 and LPDDR3 compliance test software application, transportable perpetual license | ||
| U7231C-2FP | Upgrade to DDR3 and LPDDR3 Compliance Software, fixed perpetual license | ||
| U7231C-3FP | DDR3 and LPDDR3 Debug Tool, fixed perpetual license | ||
| U7231C-3TP | DDR3 and LPDDR3 Debug Tool, transportable perpetual license | ||
| N6462B-1FP | DDR4 and LPDDR4 compliance test software, fixed perpetual license | ||
| N6462B-1TP | DDR4 and LPDDR4 compliance test software, transportable perpetual license | ||
| N6462B-3FP | DDR4 Debug Tool, fixed perpetual license | ||
| N6462B-3TP | DDR4 Debug Tool, transportable perpetual license | ||
| N6462B-2TP | Upgrade to LPDDR4 compliance software, transportable perpetual license | ||
| N6462B-2FP | Upgrade to LPDDR4 compliance software, fixed perpetual license | ||
| N6462B-4FP | LPDDR4 Debug Tool, fixed perpetual license | ||
| N6462B-4TP | LPDDR4 Debug Tool, transportable perpetual license | ||
| N6462B-5FP | LP/DDR4 Compliance Software Data Analytics Web Service, fixed perpetual license | ||
| N6462B-5TP | LP/DDR4 Compliance Software Data Analytics Web Service, transportable perpetual license | ||
| U7250A-1FP | MIPI C-PHY Compliance, fixed perpetual license | ||
| U7250A-1TP | MIPI C-PHY Compliance, transportable perpetual license | ||
| N6474A-1FP | ONFI Compliance Test, fixed perpetual license | ||
| N6474A-1TP | ONFI Compliance Test, transportable perpetual license | ||
| N5399F-1FP | HDMI 1.4 TMDS transmitter electrical compliance and validation software, fixed perpetual license | ||
| N5399F-1TP | HDMI 1.4 TMDS transmitter electrical compliance and validation software, transportable perpetual license | ||
| N5399F-2FP | Upgrade to HDMI 1.4 TMDS transmitter electrical compliance and validation software, fixed perpetual license | ||
| U7238E-1FP | MIPI D-PHY 2.0 Compliance Test Software, fixed perpetual license | ||
| U7238E-1TP | MIPI D-PHY 2.0 Compliance Test Software, transportable perpetual license | ||
| U7238E-2FP | MIPI D-PHY 2.0 Compliance upgrade from U7238C/D, fixed perpetual license | ||
| U7249E-1FP | MIPI M-PHY 4.1 Compliance Test Software, fixed perpetual license | ||
| U7249E-1TP | MIPI M-PHY 4.1 Compliance Test Software, transportable perpetual license | ||
| U7249E-2FP | MIPI M-PHY 4.1 Compliance upgrade from U7249C/D, fixed perpetual license | ||
| DSOS000-DSA | DSA Software Bundle, fixed perpetual license | ||
| DSOS001-DSA | Includes 200 Mpts/CH Memory and EZJIT Complete | ||
| N5393G-2FP | PCIe Compliance 4.0 Upgrade from N5393E (2.5G Only), fixed perpetual license | ||
| N5393G-3FP | PCIe 4.0 Compliance Application 2.5G Only, fixed perpetual license | ||
| N5393G-3TP | PCIe 4.0 Compliance Application 2.5G Only, transportable perpetual license | ||
| Software Option Class | |||
| E6960A-1FP | 1000BaseT1 Transmitter Compliance Application, node-locked, perpetual license | ||
| E6960A-1TP | 1000BaseT1 Transmitter Compliance Application, transportable, perpetual license | ||
| DSOS000-A6J | ANSI Z540 Compliant Calibration | ||
| DSOS000-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | ||
| DSOS000-AMG | Calibration + Uncertainties + Guardbanding (Accredited) | ||
| DSOS000-100 | Includes 100 Mpts/CH Memory | ||
| DSOS000-200 | Includes 200 Mpts/CH Memory | ||
| DSOS000-400 | Includes 400 Mpts/CH Memory | ||
