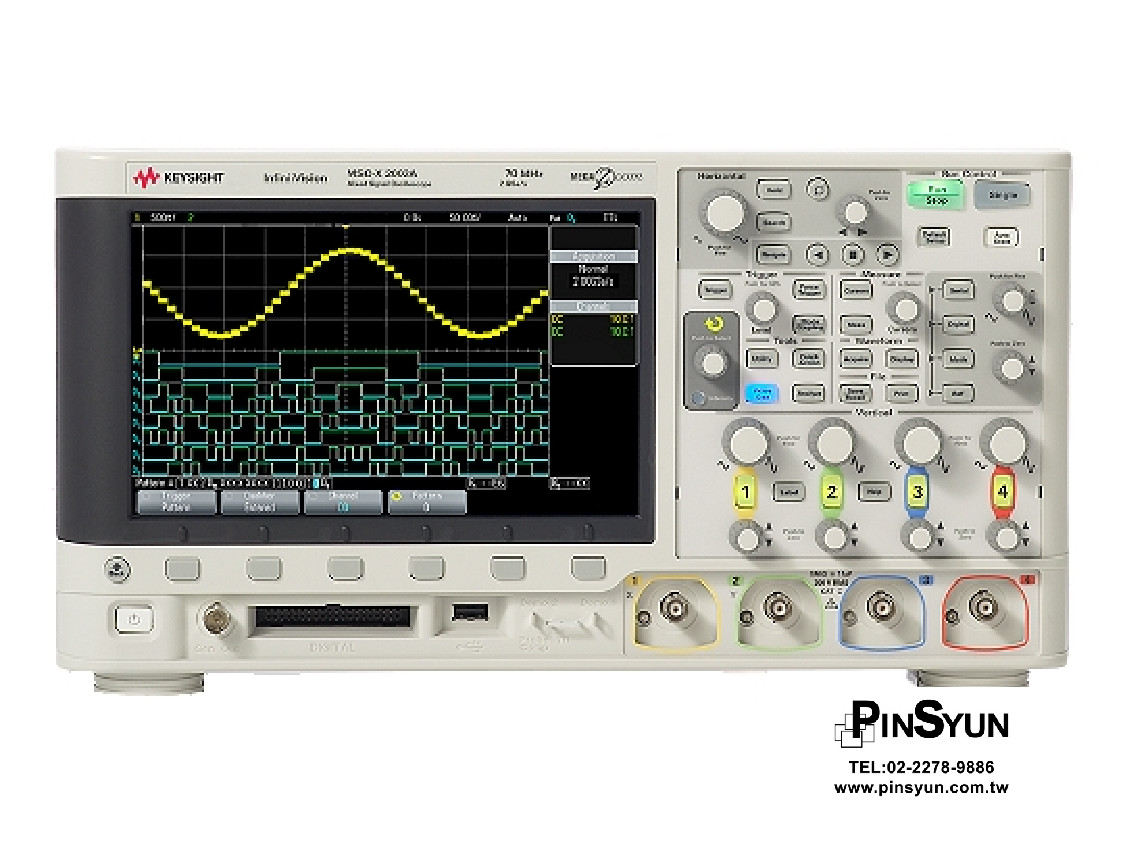

Keysight DSOX2004A 示波器Scope：70 MHz(可升級)，4 個類比通道

* Keysight DSOX2004A規格

頻寬	70 MHz (可升級100MHz or 200MHz)
頻寬升級	最高到200MHz
通道數	2 + 可選配增加8 個數位通道
最大的記憶體深度	1 Mpts
最大的取樣率	2 GSa/s
螢幕尺寸	8.5 inch
波形更新率	200,000 wfms/s
ADC 位元	8 bits
內建儀器（選配）	- 20 MHz 函數產生器 - 5 位數計頻器
協定觸發與解碼	選配
作業系統	n/a
即時	是

D2000GENA Embedded software package: I2C, SPI, and UART (RS232/422/485) serial trigger & decode, plus Mask Limit Testing
D2000AUTA Automotive software package: CAN, LIN serial trigger & decode, plus Mask Limit Testing (CAN mask files available to download)
D2000BDLA Ultimate bundle software package: Includes all serial protocols and measurements contained in D2000GENA and D2000AUTA.
DSOX2WAVEGEN Built-in 20 MHz WaveGen function generator upgrade (license only)
DSOX2MSO 8 digital timing channels upgrade (license + MSO logic probe delivered separately)
DSOX2BW12 Bandwidth upgrade from 70 to 100 MHz, 2-ch models (license only)
DSOX2BW14 Bandwidth upgrade from 70 to 100 MHz, 4-ch models (license only)
DSOX2BW22 Bandwidth upgrade from 100 to 200 MHz, 2-ch models (license only)
DSOX2BW24 Bandwidth upgrade from 100 to 200 MHz, 4-ch models (license only)

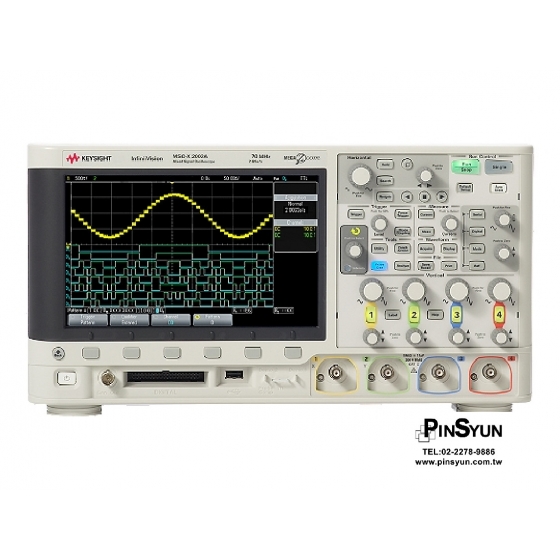

Keysight DSOX2004A 示波器Scope：70 MHz(可升級)，4 個類比通道

推薦使用頻寬70MHz 四個類比通道的DSOX2004A基礎型示波器，頻寬最高可升級到200MHz，並可以升級邏輯分析儀功能。
