X 系列信號分析儀/頻譜分析儀
N9071EM0E GSM/EDGE/Evo Measurement Application, Multi-Touch UI

N9071EM0E GSM/EDGE/Evo 量測應用軟體
N9071EM0E GSM/EDGE/Evo Measurement Application, Multi-Touch UI

庫存: 來電洽詢
主要特點

Keysight N9071EM0E GSM/EDGE/Evo 量測應用軟體

Perform GSM/EDGE/Evo base station and mobile station transmitters one-button measurements with pass/fail tests as defined by 3GPP standard.

* Keysight N9071EM0E主要技術規格:

  • - Compliant with GSM, EDGE and EDGE Evolution including VAMOS1 and Multi-Carrier BTS (MCBTS) per 3GPP GERAN standard
  • - Base station measurements: phase and frequency error; output RF spectrum (ORFS) for single carrier, multi-carrier and VAMOS enabled BTS; power vs. time (PvT); intermodulation products; TX band spur and more
  • - Mobile station measurement: EVM; phase and frequency error; ORFS; PvT; TX band spur and more
  • - Support Multi-Carrier BTS (MCBTS) and adaptive QPSK (AQPSK) modulated VAMOS1 measurements per 3GPP TS 45 standard

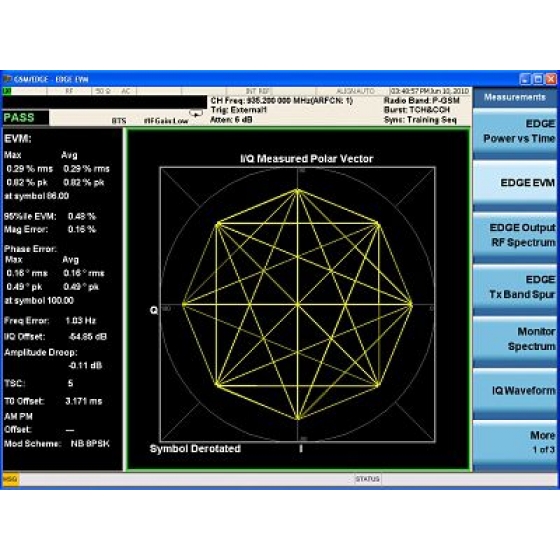

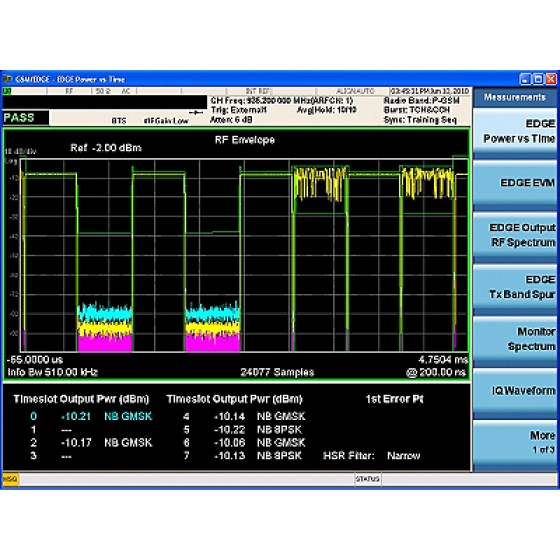

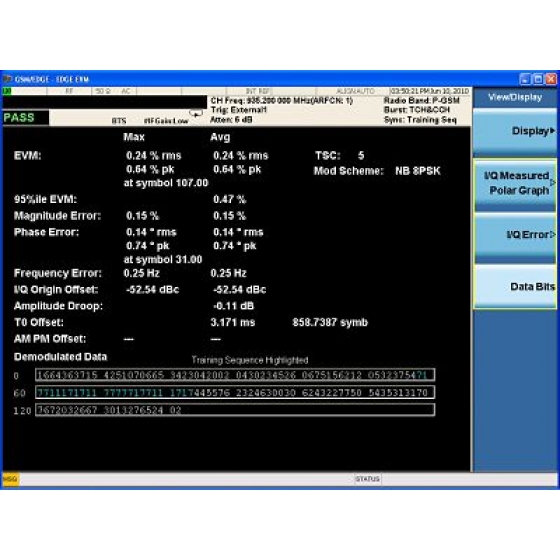

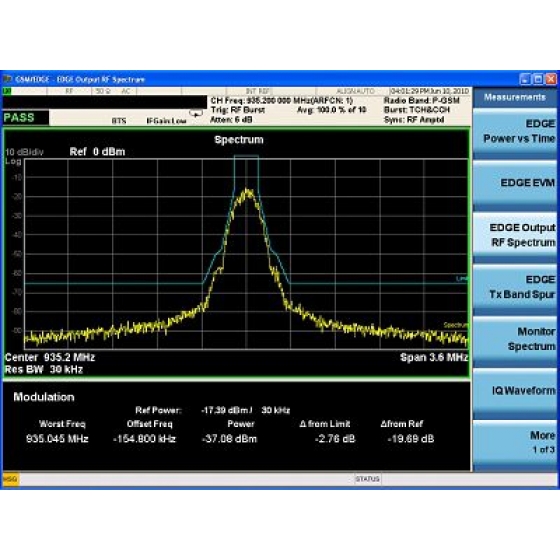

  • - Support multiple result views: constellation diagram, multi-slot power vs. time, ORFS for single and multi-carrier, demodulated bits, EVM vs. symbol, error summary, spectrum, time domain and more
  • - Performance: EDGE Evolution EVM floor: up to 0.6% (0.4% nominal); EDGE ORFS due to modulation dynamic range: up to -84 dB (-85.9 dB typ.) at 600 kHz offset; Absolute power accuracy: up to 0.19 dB
  • - Support multi-touch user interface and SCPI remote interface programming
  • - KeysightCare software support subscription included
  • - Keysight supports tiered application models with N-models for UXA/PXA/PXE, E-models for MXA/EXA/MXE/VXT, and W-models for CXA. The higher tiered application models can run at the lower platforms, which means N-models can run on all platforms, E-models can run on MXA/EXA/MXE/VXT and CXA, and W-models can only run on CXA
GSM/EDGE/Evo Measurement Application

The GSM/EDGE/Evo measurement application transforms the X-Series signal analyzers into standards-based GSM, EDGE, and EDGE-Evolution transmitter testers by adding fast one-button RF conformance measurements to help you design, evaluate, and manufacture your GSM/EDGE devices. The measurement application is further enhanced to support multicarrier (MC) BTS and voice services over adaptive multi-user channels on one slot (VAMOS)—allowing you to stay on the leading edge of your design and manufacturing challenges.
