已停產之電源供應器

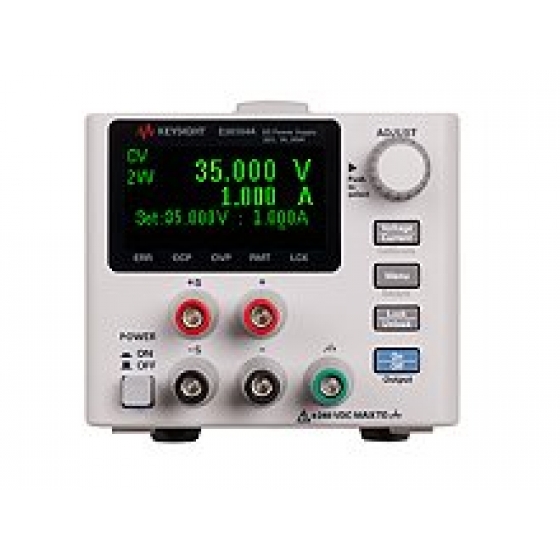

[停產]E36104A DC power supply, 35V, 1A, 35W

輸出電壓35V 輸出電流1A 功率35W

目前停產/現可支援


取代商品:

E36104B 直流電源供應器,35V,1A,35W
庫存: 來電洽詢

E36104A 直流電源供應器    產品型錄

主要特點

目前停產/現可支援

取代商品: E36104B 直流電源供應器,35V,1A,35W


Output rating (0 to 40 °C)

  • Voltage: 35 V
  • Current: 1 A
  • Power: 35 W

Programming accuracy

  • Voltage: 0.05% + 12 mV
  • Current: 0.05% + 0.6 mA

Ripple & noise (20 Hz to 20 MHz)

  • Voltage rms: 4 mV
  • Voltage peak-to-peak: 60 mV
  • Current rms: 400 µA

Readback accuracy

  • Voltage: 0.05% + 8 mV
  • Current: 0.05% + 0.5 mA

Keysight E36100 Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. They also include low power current measurement capability and overvoltage, overcurrent, and overtemperature protection. You can control these power supplies via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device.

庫存量:來電洽詢

一般配置

  • E36104A-0E3  AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
  • E36104A-0E9  AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz
  • E36104A-0EM  AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
  • E36104A-PLG  Power cord - Continental European, only for EU distributor with multiple power cord standards
