已停產之電源供應器

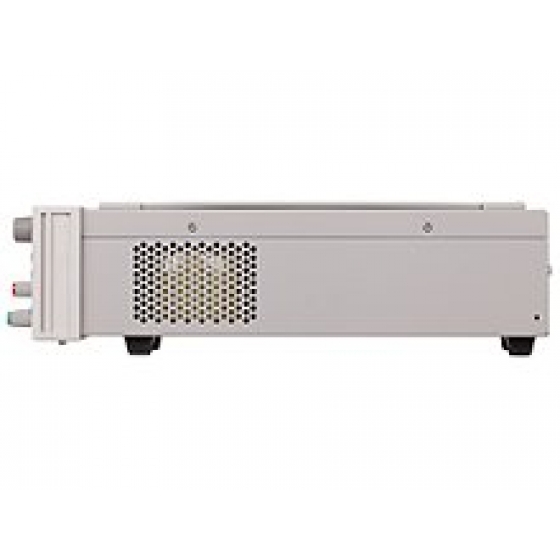

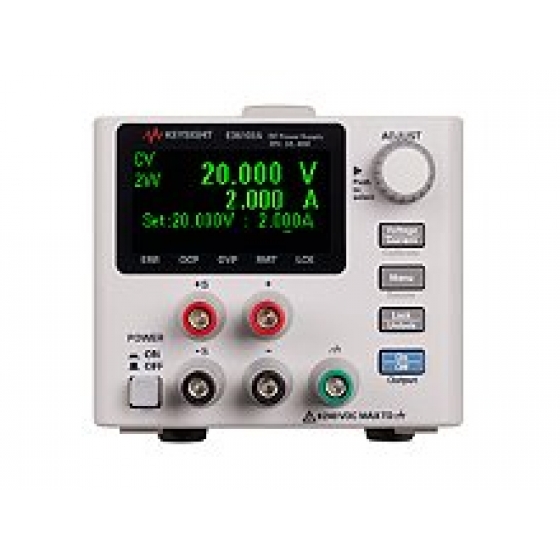

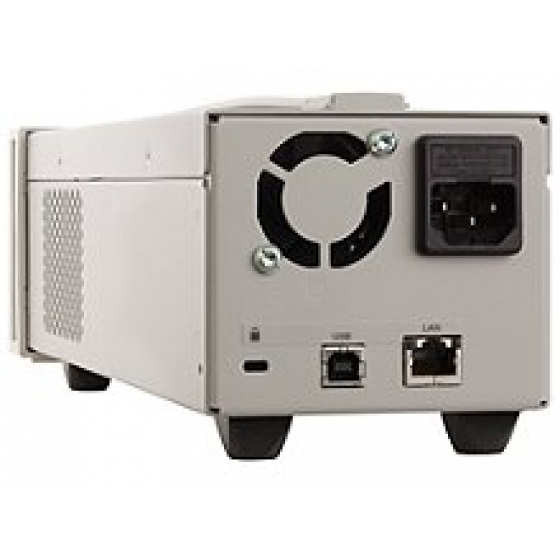

[停產]E36103A DC power supply, 20V, 2A, 40W

輸出電壓20V  輸出電流2A  功率40W

目前停產/現可支援

取代商品

E36103B 直流電源供應器,20V,2A,40W
庫存: 來電洽詢

E36103A 直流電源供應器    產品型錄

主要特點

目前停產/現可支援

取代商品:
E36103B 直流電源供應器,20V,2A,40W



Output rating (0 to 40 °C)

  • Voltage: 20 V
  • Current: 2 A
  • Power: 40 W

Programming accuracy

  • Voltage: 0.05% + 7 mV
  • Current: 0.05% + 1 mA

Ripple & noise (20 Hz to 20 MHz)

  • Voltage rms: 2 mV
  • Voltage peak-to-peak: 30 mV
  • Current rms: 1 mA

Readback accuracy

  • Voltage: 0.05% + 5 mV
  • Current: 0.05% + 1 mA

Keysight E36100 Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. They also include low power current measurement capability and overvoltage, overcurrent, and overtemperature protection. You can control these power supplies via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device.

庫存量:來電洽詢

一般配置

  • E36103A-0E3  AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
  • E36103A-0E9  AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz
  • E36103A-0EM  AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
  • E36103A-PLG  Power cord - Continental European, only for EU distributor with multiple power cord standards
