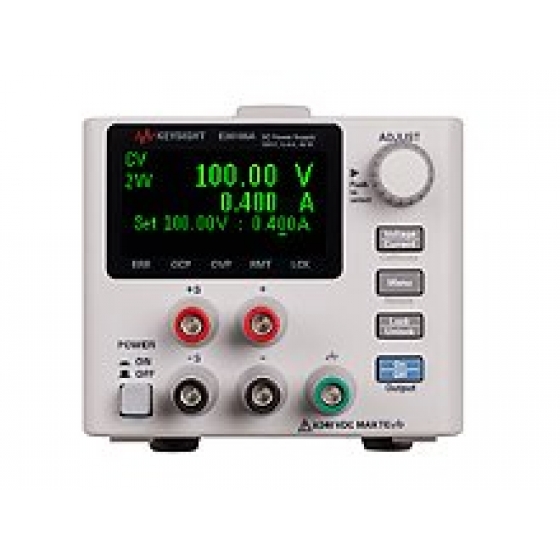

Keysight E36106A DC power supply, 100V, 0.4A, 40W目前已停產, 可由E36106B取代

取代商品:E36106B 直流電源供應器，100V，0.4A，40W

Output rating (0 to 40 °C)

- Voltage: 100 V
- Current: 0.4 A
- Power: 40 W

Programming accuracy

- Voltage: 0.05% + 40 mV
- Current: 0.05% + 0.3 mA

Ripple & noise (20 Hz to 20 MHz)

- Voltage rms: 15 mV
- Voltage peak-to-peak: 150 mV
- Current rms: 160 µA

Readback accuracy

- Voltage: 0.05% + 40 mV
- Current: 0.05% + 0.3 mA

主要規格
訂購資訊

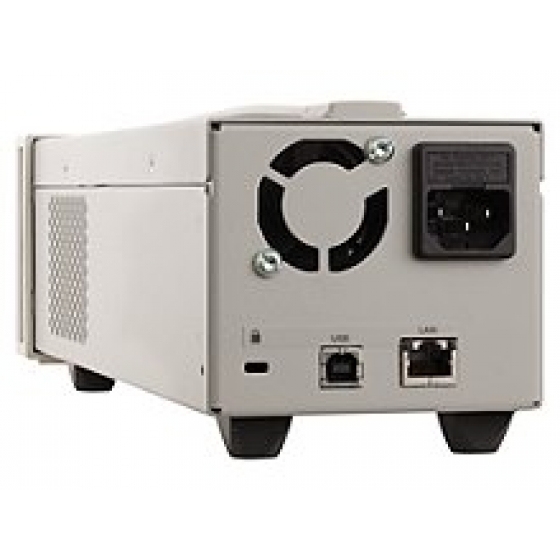

Keysight E36100 Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. They also include low power current measurement capability and overvoltage, overcurrent, and overtemperature protection. You can control these power supplies via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device.

庫存量: 可由E36106B取代

一般配置

E36106A-0E3 AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
E36106A-0E9 AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz
E36106A-0EM AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
E36106A-PLG Power cord - Continental European, only for EU distributor with multiple power cord standards
